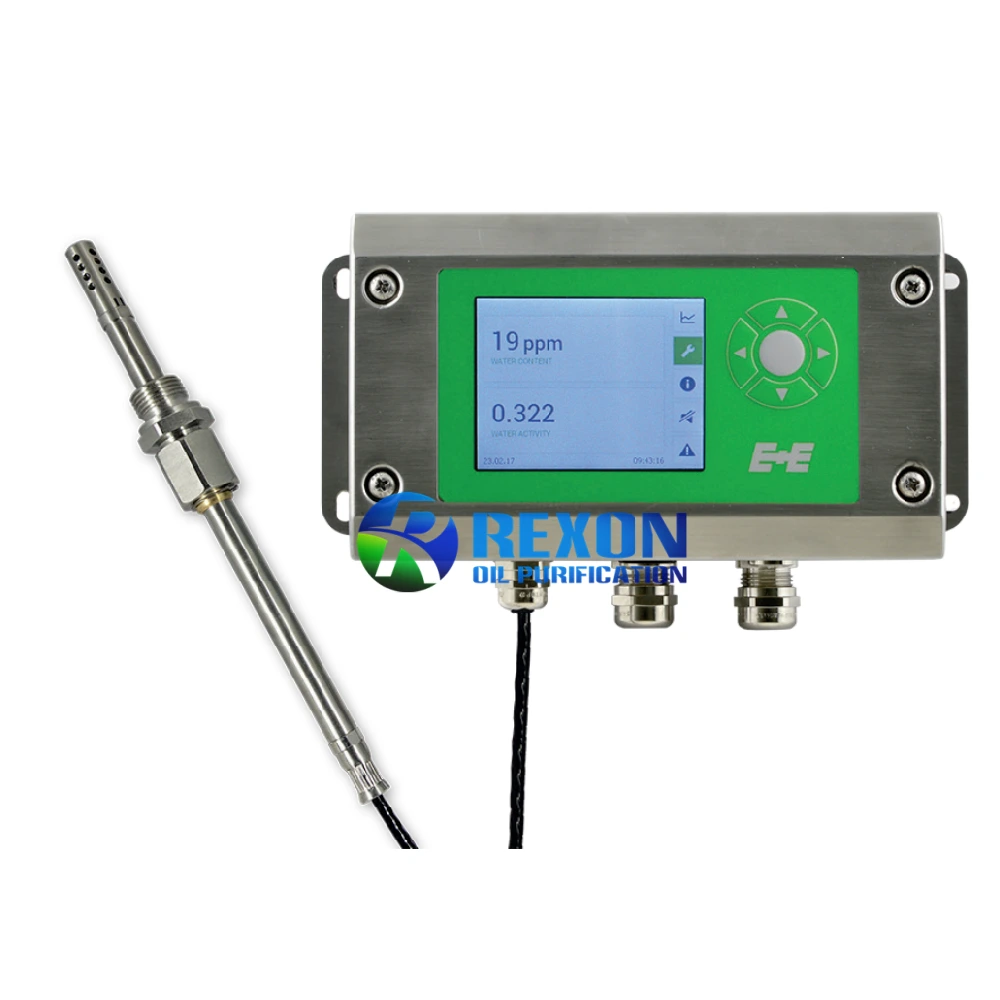

REXON EE360 Online Mositure Tester

REXON EE360 Online Oil Moisture Tester is a high-end monitoring device specifically engineered for continuous and reliable measurement of moisture in lubrication oil, hydraulic oil, insulation oil, and diesel fuel. By combining advanced thin-film humidity sensing technology with precision temperature measurement, the EE360 provides highly accurate water activity (aw) values and automatically calculates absolute water content (ppm). This dual-parameter monitoring enables users to clearly understand both the saturation level and actual moisture quantity in oil, offering a comprehensive assessment of oil condition. With its robust sensing probe capable of operating under extreme conditions up to 180°C and 20 bar pressure, the EE360 ensures stable and long-term performance even in demanding industrial environments such as power plants, manufacturing systems, and heavy machinery applications.

Designed for both performance and usability, the EE360 features a durable IP65/NEMA 4 enclosure available in polycarbonate or stainless steel, ensuring excellent protection and easy installation. The device is equipped with a 3.5-inch TFT color display that can simultaneously show up to four parameters, along with powerful data logging capabilities storing up to 20,000 records per variable. Multiple output options—including analog signals, RS485 (Modbus RTU), and Ethernet (Modbus TCP)—allow seamless integration into existing monitoring systems. In addition, users can perform configuration, diagnostics, and firmware updates via intuitive push buttons or dedicated software through a USB interface. With optional ball valve installation, the probe can be inserted or removed without interrupting system operation, making the EE360 an efficient, intelligent, and maintenance-friendly solution for real-time oil condition monitoring.

1. High-precision moisture monitoring with advanced thin-film sensor technology, ensuring stable and reliable measurement results

2. Simultaneous measurement of water activity, temperature, and real-time calculation of moisture content (ppm) for comprehensive oil condition analysis

3. Wide operating range up to 180°C and 20 bar, ideal for harsh industrial environments and continuous online monitoring

4. 3.5” TFT color display supporting multi-parameter visualization and intuitive on-site operation

5. Built-in data logger storing up to 20,000 records per parameter for trend tracking and predictive maintenance

6. Multiple output options including analog signals, RS485 (Modbus RTU), and Ethernet (Modbus TCP) for easy integration into monitoring systems

7. Probe installation and removal without system shutdown (with optional ball valve), reducing downtime and maintenance costs

8. Durable IP65 / NEMA 4 enclosure available in polycarbonate or stainless steel for long-term industrial use

9. Flexible configuration via display or software through USB interface for convenient setup and diagnostics

10. Suitable for various oil types with accurate moisture evaluation based on oil-specific parameters

Water activity (aw): 0 … 1 aw

Water content: 0 … 100,000 ppm

Temperature range: -40 … 180°C

aw accuracy (-15 ~ 40°C): ±(0.013 + 0.3% mv) aw

aw accuracy (>0.9 aw): ±0.023 aw

aw accuracy (-40 ~ 180°C): ±(0.015 + 1.5% mv) aw

Response time (t90): approx. 10 minutes

Probe working temperature: -40 … 180°C

Pressure resistance: up to 20 bar

Probe material: Stainless steel (AISI 316L)

Process connection: G1/2” ISO or 1/2” NPT

Analog output: 0–10 V / 4–20 mA / 0–20 mA

Digital interface: RS485 (Modbus RTU), Ethernet (Modbus TCP)

Alarm output: 2 relay outputs

Data logging: 20,000 values per parameter

USB interface: configuration, data download, firmware update

Display: 3.5” TFT color screen

Display content: up to 4 parameters simultaneously

Power supply: 8–35 V DC / 12–30 V AC

Optional power supply: 100–240 V AC, 50/60 Hz

Protection class: IP65 / NEMA 4

Enclosure material: Polycarbonate or stainless steel

Electronics operating temperature: -20 … 50°C

Storage temperature: -40 … 60°C
