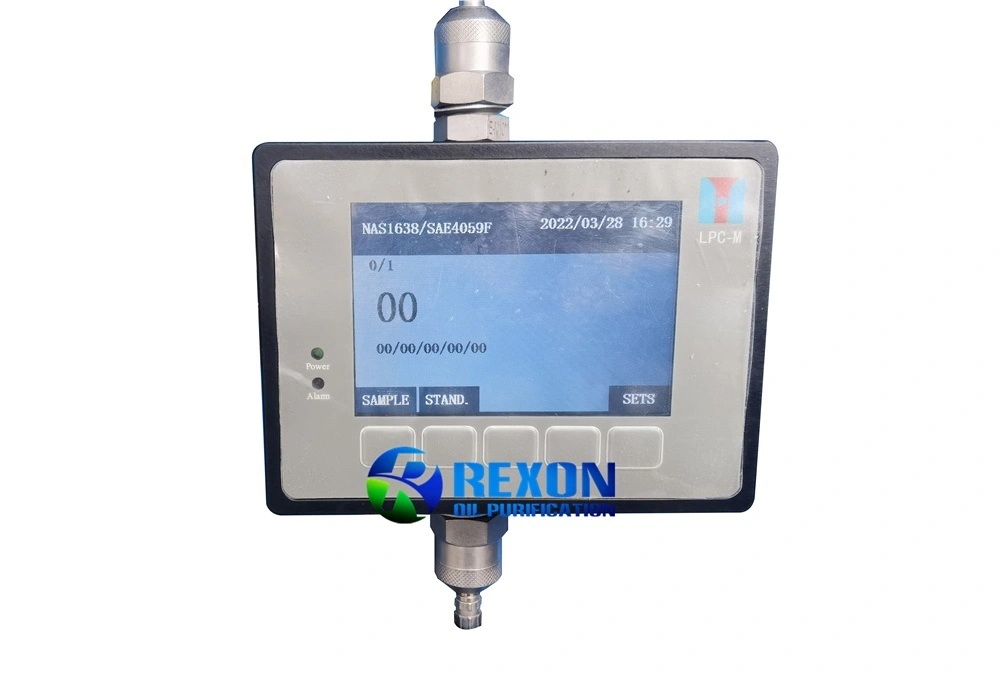

LPC-M Online Oil Particle and Moisture Counter

The LPC-M on-line particle counter adopts the counting principle of the photoresistance (shading) method specified by the International Hydraulic Standards Committee, and is specially used for on-site online measurement and oil pollution level detection device. It has the advantages of small size, light weight, fast detection speed, high precision, good repeatability, etc., and can work under severe conditions such as high temperature and high pressure.

It is suitable for testing of engine oil, gear oil, transformer oil (insulating oil), hydraulic oil, lubricating oil, synthetic oil, water-based (water-based hydraulic oil, water glycol, etc.), alcohols, ketones, etc. And can be widely used in aerospace, petrochemicals, transportation ports, iron and steel metallurgy, automobile manufacturing and other fields.

1. Adopting the principle of photoresist (shading) method, using high-precision laser sensor, small size, high precision and stable performance
2. Built-in data analysis system can display the real data of each channel particle size and automatically determine the sample level
3. The standard model can directly withstand pressure of 100 kg, and can be equipped with a pressure-reducing valve for 400 kg high pressure measurement
4. With volume flushing and duration flushing modes, it is convenient for users to use and maintain the equipment

5. Built-in ISO4406, NAS1638, SAE4059, GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution level standards, one test can give all built-in standard results
6. Built-in calibration function, which can be calibrated according to GB/T21540, ISO4402, ISO11171, GB/T18854 and other standards
7. All standard and arbitrary alarm levels can be independently set to achieve pollution or cleanliness detection
8. RS232 or RS485 interface, support standard modbus protocol, can connect to computer, upper computer, printer, PLC system or other equipment for data monitoring and processing

9. Large storage, can be stored in the instrument internal or external USB storage device
10. Robust appearance structure, suitable for complex working environment
11. The position of the dual oil outlets can be selected up and down for easy installation. The bottom-in and top-out mode is helpful to minimize the interference of online air bubbles on the test results
12. Continuous test can also be set arbitrarily test interval
13. The instrument interface can freely control the switch of the remote printer
14. Chinese & English system
