Product Details

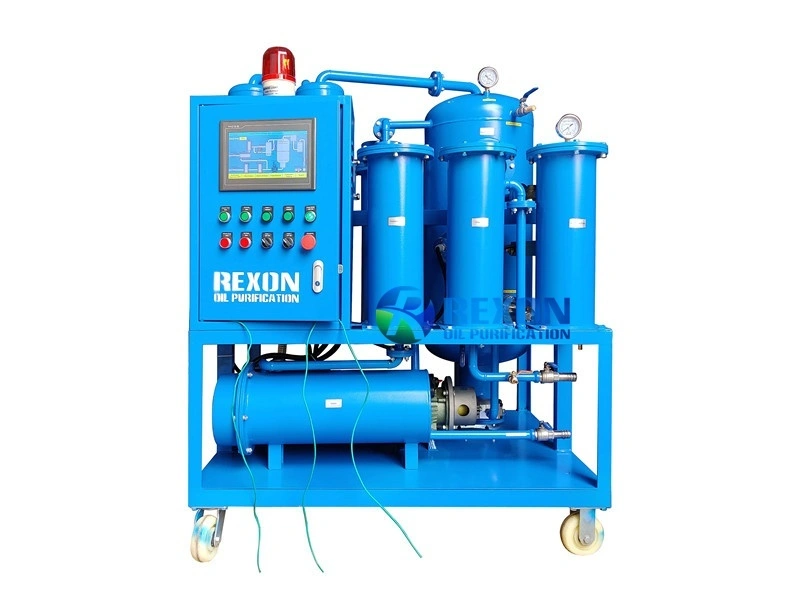

This Hydraulic Oil Purification Machine takes multi-stage filtration system to ensure high filtration precision, and is equipped with duplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, which can rapidly and effectively remove water, gas, particles, and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil viscosity, flash point and performance. The treated hydraulic oil can be reused in various industrial equipment. It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, and railway, etc.
This Oil Purification Machine is a 220V machine, which can be widely used in 220V power supply. It adopts advanced fully automatic PLC control system, which can give the machine a super easy operation method and avoid misoperation for users. Its automatic operation, portable size, safe and reliable performance are very suitable for new users.
And this oil purifier machine has strong impurity removing capability. The large area and intensive, precise filtration materials can remove the granules in the oil, and meanwhile, its automatic back flushing function can automatically clean the large quantity of residues and impurities held by the primary filter. This serves as a substitute for system cleaning device and can bring a seriously contaminated oil system as new oil system back to running hydraulic system and lubricating system.
Equipped with vacuum and pressure gauges, intelligent digital indicators, and a PLC fully automatic control system, allowing users to monitor the operating status of each component. The system can detect faults and stop operation automatically, ensuring safe and reliable operation.
All key configurations and core components are sourced from renowned Chinese and European industrial brands. This ensures equipment performance and reliability while upholding global standards and quality, providing customers with long-term, stable assurance.
|
Item |
Model |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
||
|
Flow rate |
L/Hr |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
||
|
Vacuum degree |
Mpa |
-0.06 ~ - 0.095 |
|||||||||
|
Working Pressure |
Mpa |
≤0.4 |
|||||||||
|
Temperature Degree |
℃ |
0 ~ 100 |
|||||||||
|
Power Supply |
|
380V, 3Phase, 50HZ or as requirement |
|||||||||
|
Working noise |
DB (A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
||
|
Electric heating Power |
KW |
15 |
15 |
24 |
30 |
60 |
90 |
120 |
150 |
||
|
Total electric Power |
KW |
16.5 |
16.5 |
25.65 |
32 |
63.5 |
97 |
128 |
160 |
||
|
Inlet (outlet) Caliber |
mm |
Ф25 |
Ф25 |
Ф25 |
Ф32 |
Ф42 |
Ф50 |
Ф50 |
Ф60 |
||
|
Size |
M |
1.35*1.2*1.4 |
1.35*1.2*1.4 |
1.4*1.3*14 |
1.5*1.4*1.5 |
1.7*1.6*1.7 |
1.9*1.7*1.9 |
2.0*1.8*2.0 |
2.2*2.1*2.1 |
||
|
Weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1400 |
||
|
Oil Data after Treatment |
|||||||||||
|
Moisture (water content) |
≤ 50 PPM |
||||||||||
|
Gas Content |
≤0.1% |
||||||||||
|
Impurities Degree (Filtration precision) |
≤1~5 Micron (No Free Carbon) |
||||||||||
|
Demulsification |
New Oil≤15Min, Running Oil≤30Min |
||||||||||
|
Cleanliness |
≤NAS 1638 Grade 5 |
||||||||||
