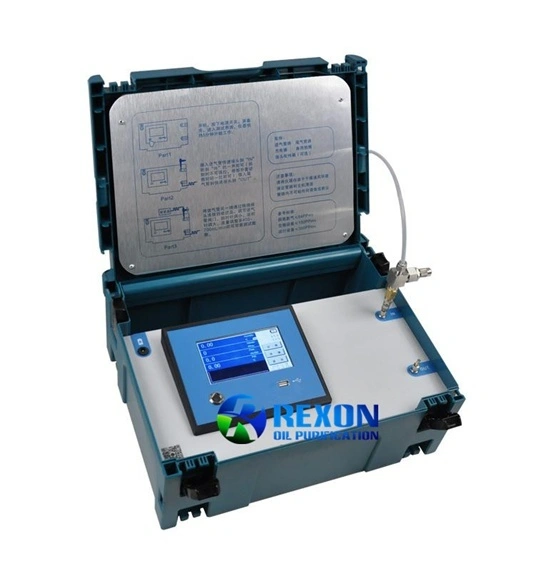

Rexon Automatic SF6 Synthesized Tester

The RN500SF6 Synthesized Tester is a set of SF6 trace moisture test, SF6 purity test and SF6 gas decomposition product test, which integrates the functions that can be realized with three instruments in one. All the indicators can be tested in one field measurement, which greatly saves the gas in the equipment, reduces the user's workload and improves the work efficiency.The reason why RN500SF6 has excellent performance is because all the sensors from the best foreign brands are used: The stable and reliable Finland Vaisala brand moisture sensor; The German Smart-GAS NDIR principle purity sensor, and the decomposition product test uses the Swiss Mamba wave sensor.In addition, RN500SF6 is a color LCD display, which can display various parameters in real time, simple operation throughout, built-in rechargeable battery, AC and DC dual-use.

1. Auto-calibration at zero data, full curve tracking correction

2. Protective air chamber with patented technology, fast measurement speed

3. Simple operation and easy to carry

4. Good repeatability and fast response

5. Built-in temperature compensation function

6. AC and DC dual-use, built-in rechargeable lithium battery, automatic switching, over-charge and over-discharge protection

7. Slope automatic calibration

8. Large screen display

9. Advanced probe protection

10. Anti-pollution and anti-interference11. High sensitivity and good stability

Light source: semiconductor laser

Range of viscosity: ≤100cSt (Air pressure chamber is optional for higher viscosity)

Range of flow rate: 5~60 mL/min(The typical value is 30mL/min)

Particle size range: 1-500μm

Counting accuracy: error less than ±10%

Pressure range for online testing: 0.1~0.6Mpa (the maximum pressure can reach 42 MPa when the decompression device is selected)

Sensitivity: 1µm/4µm(c)

Standards: GJB420B,SAE4059F-CPC, ISO4406, GB/T14039, GJB420A, NAS1638/SAE4059F, GOST17216

Range of volume: 1~999mL

Accuracy: ±0.5 levels of contamination

Range of test interval: 1s~24h

Range of sample temperature: 0~80ºC

Coincidence deviation limit: 40,000 p/ml

Range of water activity: 1~1aw(±0.05aw)

Range of water content: 1~360ppm(±10%)

Data storage: provides 1000 groups of data storage space, and support USB flash storage

Interface: USB interface, power interface

Protection grade: IP67 (protection box)

Operating temperature: -20~60ºC

Power supply: AC220V±10%;50/60Hz;DC 12V

Weight: 5.5 kg

Volume:365 mm × 295 mm × 170 mm
