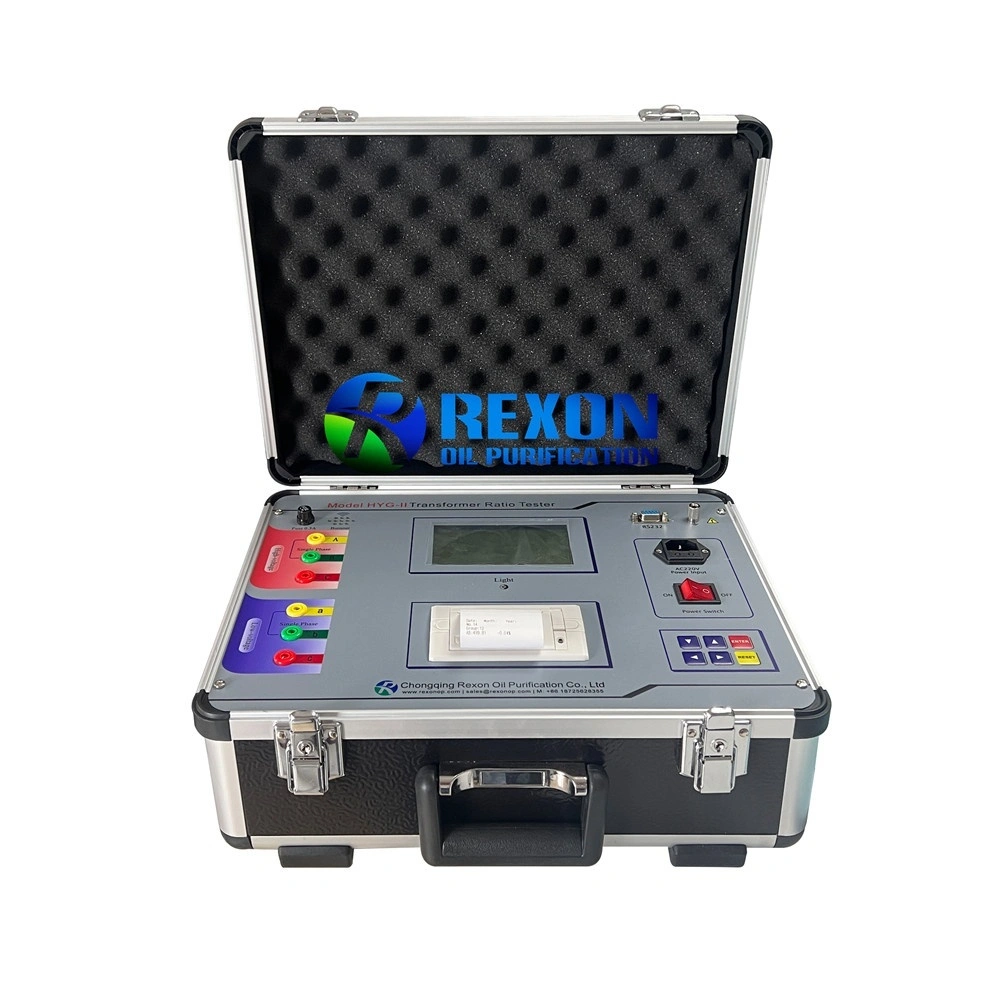

REXON Fully Automatic Transformer Ratio Tester
Introduction
According to the IEC and the relevant national standards, in power transformer production, the user acceptance and maintenance test process, the transformer ratio test is to do projects, it can effectively monitor the transformer products manufactured and used in the process of quality, prevent the transformer inter-turn short circuit, open circuit, connection error, voltage regulating switch internal fault or contact fault.
According to the user's requirements for the site use, we developed and produced the new type transformer ratio tester model HYG-II. It is a fully automatic tester that measures the transformation ratio of single-phase and three-phase transformers using modern electronic techniques and does not require any manual ‘null’ balancing. It makes the operation more convenient, complete functions, stable and reliable data, and test speed. Advantages
Fully automatic: no manual balancing required
Test single phase and three phase transformers
Automatic measure transformer connection group
Automatic process transformation of the group
Automatic calculation of ratio error
Isolates test voltage automatically after test
Test results are saved automatically
Recall and print last the 30 test results
Prints results on the built-in printer
SpecificationsPower supply: 220V±10%, AC 50 Hz.
Measurement ratio: 1:10000
Display: LCD
Accuracy: 0.2 class
Test voltage: H.V.: 190V AC
L.V.: 0.19-190v AC (vary with ratio)
Usage environment: ≤ 40º C.
< 85% R.H.
Accessories: Mains cord; Connection leads terminated with alligator clips, 8 meters long: 2 numbers; Operating manual; Calibration certificate
Dimensions: 480*400*300mm
Package: Plywood case
Weight:10 kg.
Weight of Package: 30 kg.
