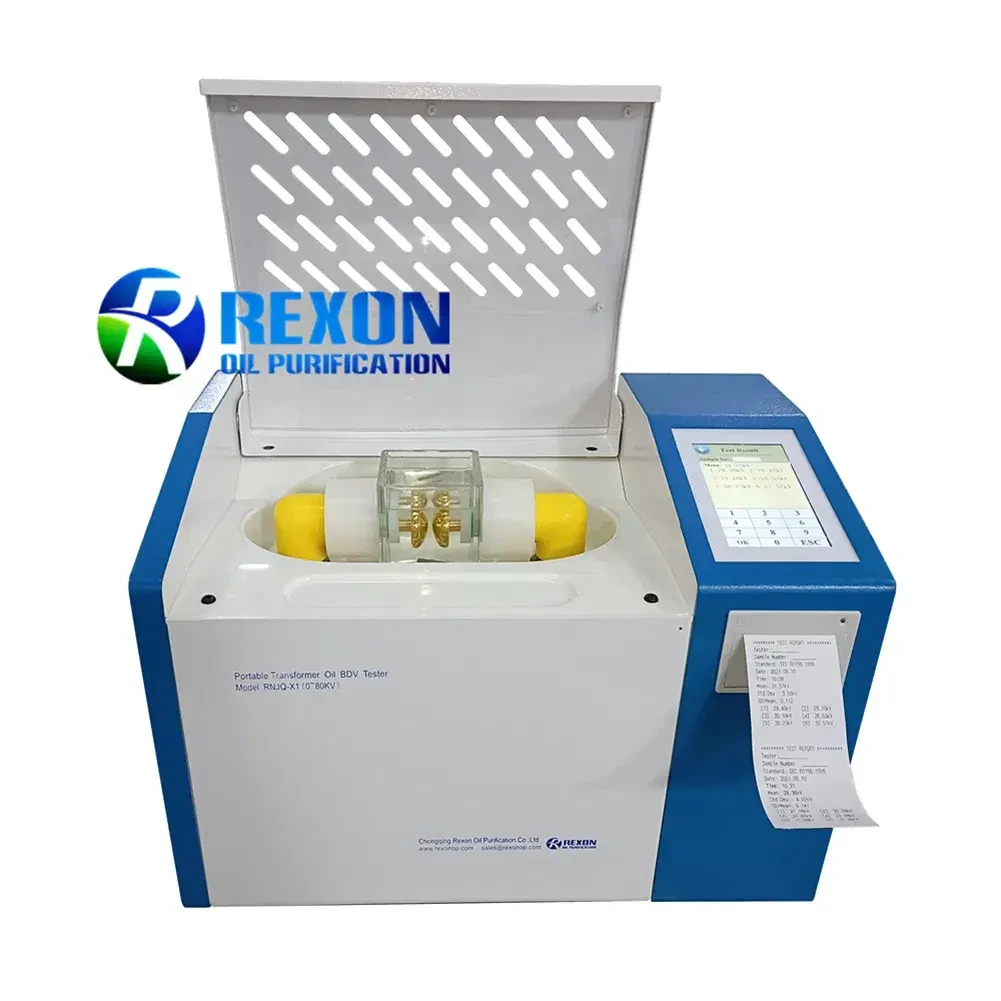

Intelligent Transformer Oil BDV Tester 80kV
1.With a microprocessor, automaticaly fulll the withstand voltage test for oil circulaion with a range of 0-80kv (including boosting, maintaining,mixing, standing, calculation, printing and other operations)
2 Display by large-screen LCD and prompt by English menu
3. Simple operation. The machine will automatically complete the withstand voltage test on one cup of sample ol after simple seting by the operatorBreakdown voltage value of 1 to 9 times and recurent imes will be automaticaly saved. After the test the thermal printer wil print each breakdown
voltage value and average yalue.
4.Power-down preservation.lt can save 100 tested results
5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for
control.
6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.
7. With the function of displaying the measured temperature and system clock.
8.Communicate with computer with a standard RS232 interface.
9. USB can export the test data.
