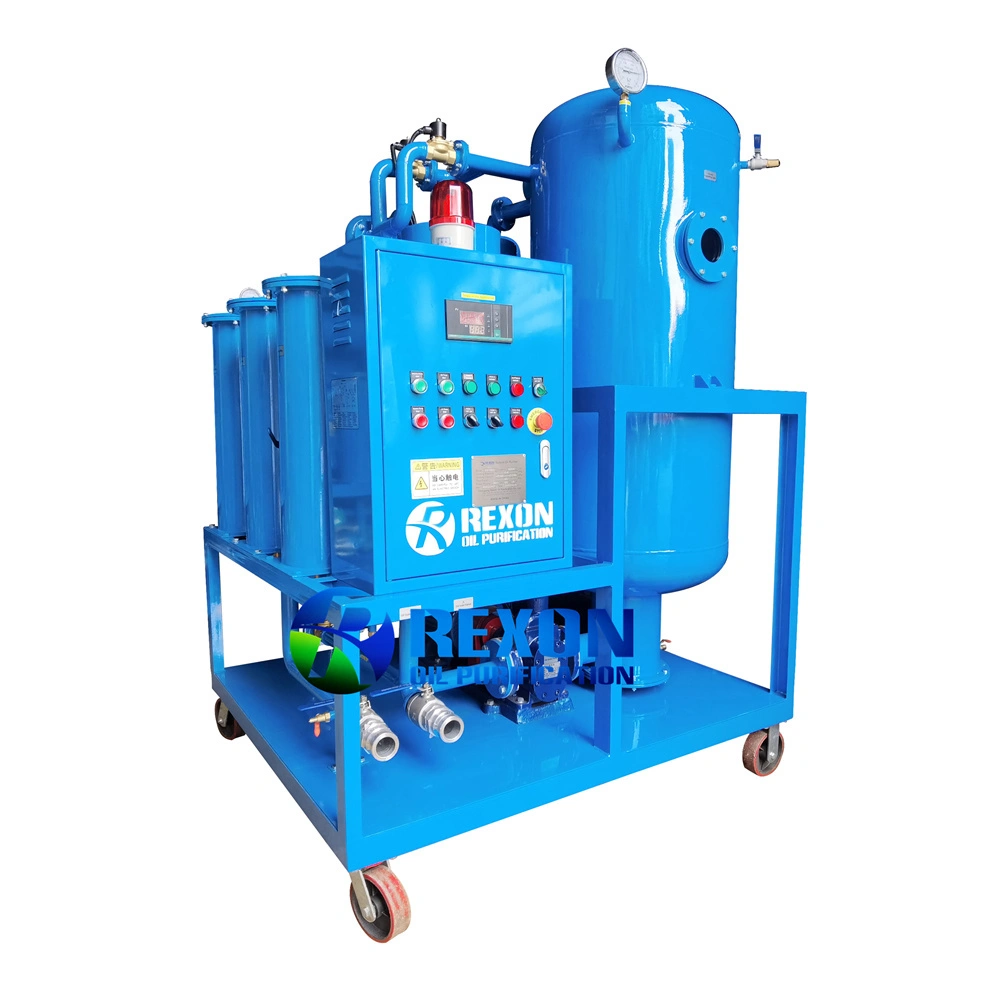

High Efficiency Turbine Oil Purification and Reconditioning Machine

Big capacity and fast dehydration turbine oil filtration plant TY-200(12000LPH) is widely used for filtering & dehydrating turbine lubricating oil in electric power, metallurgical, chemical engineering industries.

1. Breaking emulsification thoroughly with high- molecule polymeric material, the value of breaking emulsification ≤15min (GB/F 7305).
2. Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.
3. With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 5(NAS1638).

4. With the trapezoidal, spiral, automatic back flushing system.
5. With the advanced dielectric condensation devices.
6. On-line oil purification can be carried out with turbine or water turbine automatically without any person.

1. This machine breaks emulsification thoroughly, and the oil is very difficult to be emulsified again after treatment. Its dehydration volume is large and it can drain off the water on line.

2. "T" shape oil vacuum chamber, expanded evaporation area, improved the oil dehydration and degasification effect.

3. Since this TY-200 machine is equipped with an online moisture tester and an online particle counter, it can detect and shows the oil moisture PPM data and oil cleanliness degree data in real-time. It is convenient for users to know the situation of turbine oil.

4. PLC programing and big touch operation screen, make the operation more easily.
