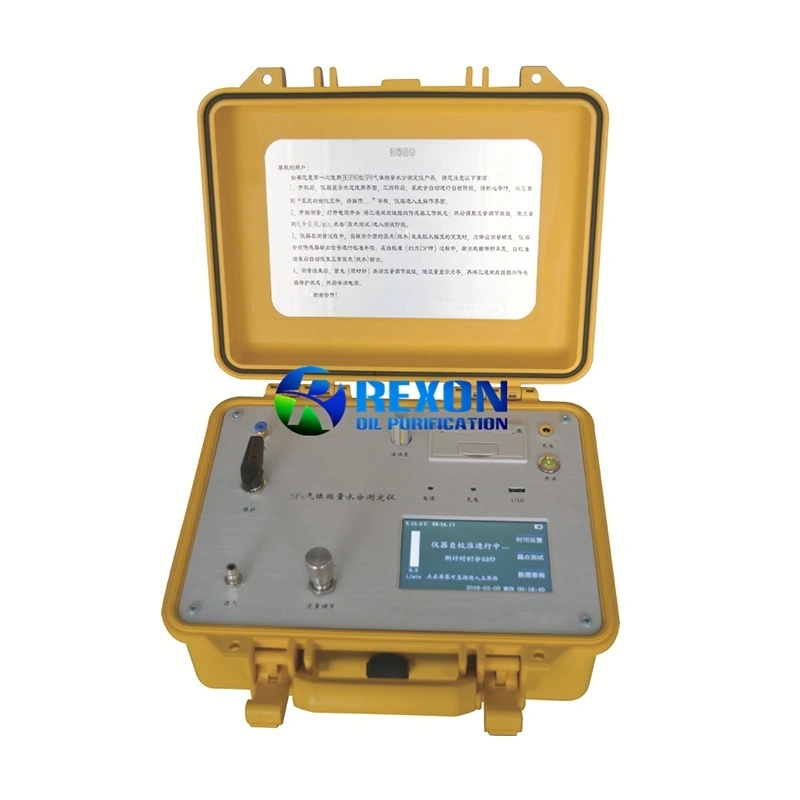

SF6 Gas Trace Moisture Tester

RNSFS SF6 Gas Trace Moisture Tester is an intelligent measuring instrument independently developed by our company. This product is developed and designed according to the national power industry standard DL/T506-2007 , using the original imported high-precision dew point transmitter and advanced digital circuit control technology.

The instrument has the advantages of a wide measurement range, fast response time, short measurement cycle, intuitive display and convenient operation. It can be applied to the humidity measurement of air, nitrogen, inert gas and any gas without a corrosive medium, especially the humidity measurement of SF6 gas. It can be used by departments such as electric power, petrochemical, metallurgy, environmental protection and research institutes, and has a high-cost performance ratio.

1. Measuring range:

2. Dew point: -80ºC~+20ºC

3. Micro water content: 0~19999ppm

4. Measurement accuracy:

±2ºC(-60ºC~-50ºC)

±1ºC(-49ºC~+20ºC)(Scope of work)

5. Resolution ratio:

6. Dew point: 0.1ºC

7. Micro water content: 1ppm

8. Measuring time: ≤3 Minutes/point

9. Sampling flow: 0.6~1.0L/min

10. Display mode: Color touch screen display, full English interface, with backlight

11. Power supply: lithium battery can work continuously for 8 12. hours with overcharge protection

12. Inspection method: self calibration function after startup

Working temperature: -40ºC~+80ºC
