Automatic SF6 Gas Leak Quantitative Detector

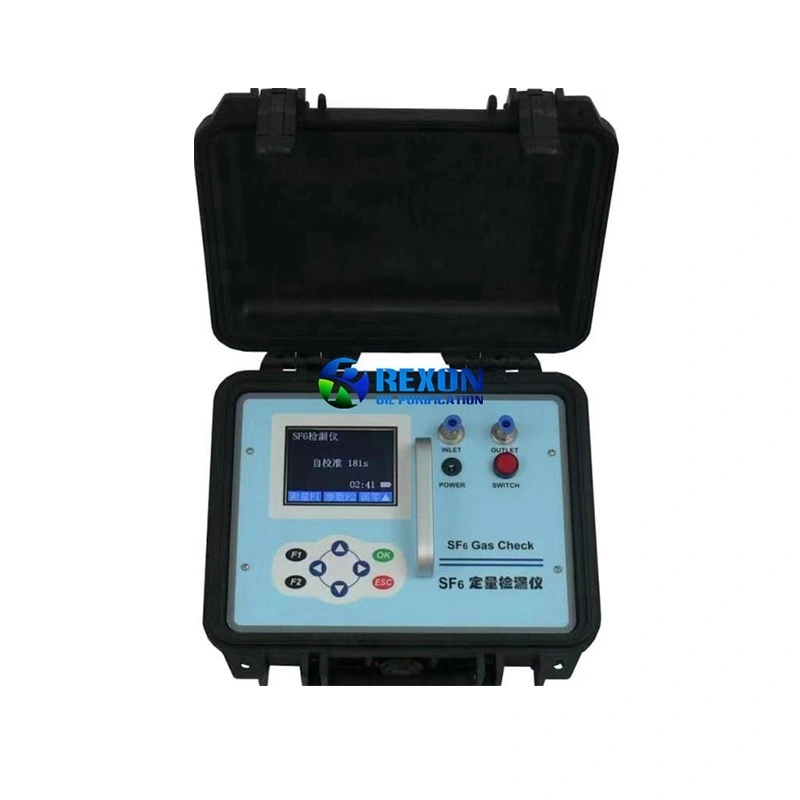

IntroductionREXON RTL-A SF6 quantitative leakage detector is mainly used for leak detection about SF6 related products in electric power industry, which include GIS and SF6 insulated circuit breaker and SF6 gas inflatable ring network cabinet, etc. The equipment focus on various advantages in one, fully considers the characteristics of field application, and it is designed to be light weight, portable, non-radioactive, does not need argon, rapid response, high precision, high sensitivity and is not affected by the environment gas.Color liquid crystal display is employed by the SF6 quantitative detector to display SF6 concentration in a real-time manner. The detector can be operated very simply. It is provided with information storage with large capacity. It is also equipped with built-in rechargeable lithium battery for AC and DC dual-use.Technical IndicatorsMeasurement scope: 0~300PPM SF6
Sensitivity: ± 0.1μL/L
Resolution: 0.1μL/L
Grade for storage temperature: -40~+70ºC
Operation temperature: temperature: -30~+60ºC
Sampling method: automatic suction type built-in electromagnetic diaphragm pump
Alarm mode: customized alarm limit, sound and light alarm
Working voltage: 220VAC±10% 50Hz, AC and DC dual-use, continuous working for several hours
Dimension: 200×270×140
Weight: about 3kg AdvantagesExtra-large LCD display, graphical interface
Customized alarm limit, sound and light alarm
High sensitivity, sound stability
Compact size, easy to carry
AC and DC dual-use for field application
