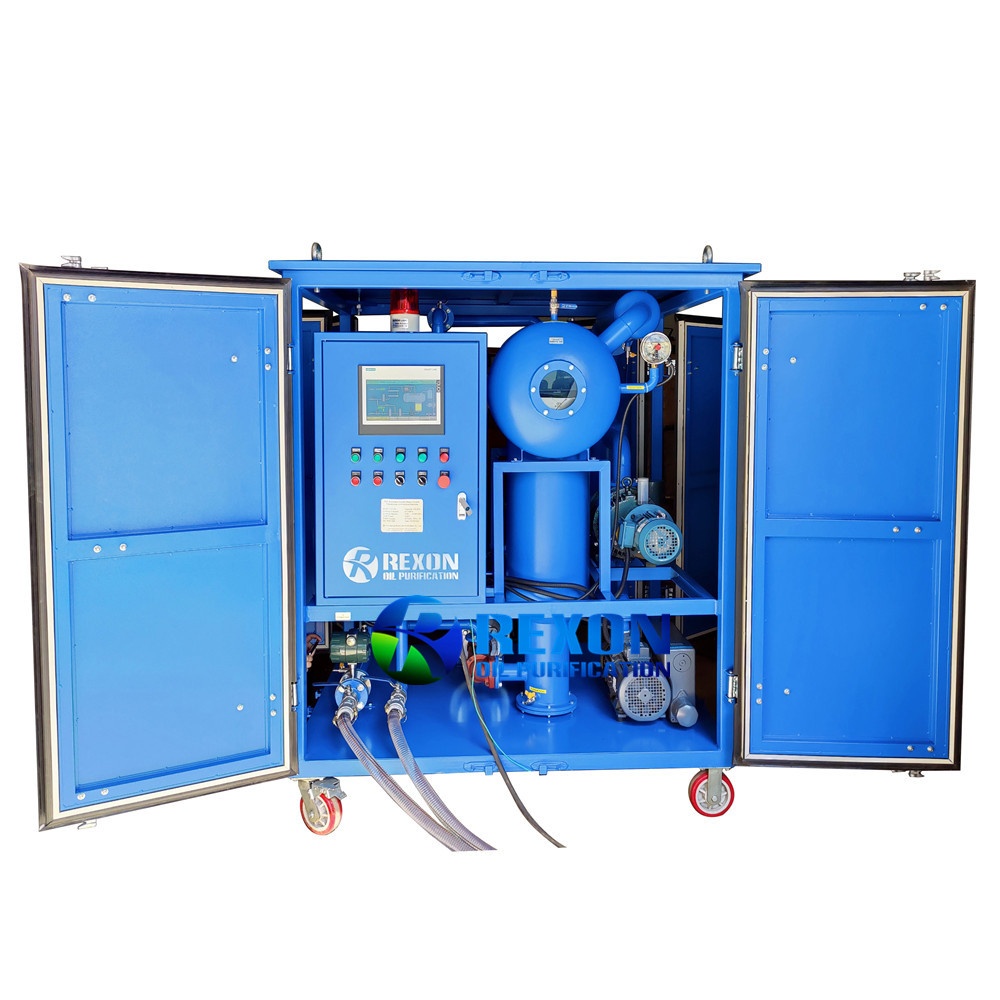

Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System

Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System
  • Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System
  • Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System
  • Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System
  • Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System

ZYD-50(3000LPH) Vacuum Transformer Oil Filtration System takes two stage high vacuum pumps as the powerful vacuum system, which can produce a great high vacuum of a limitation to be 5Pa.


  • Product No.: ZYD-50(3000LPH)

Details

Application

ZYD-50(3000LPH) Vacuum Transformer Oil Filtration System takes two stage high vacuum pumps as the powerful vacuum system, which can produce a great high vacuum of a limitation to be 5Pa. ZYD-50 equip with 3 stages filter elements to do a particles and impurities cleaning work high efficiently.

ZYD-50 transformer oil filtration system is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The transformer oil purifier machine is especially for purifying the insulation oil in all kinds of large power equipment that are above 110KV, especially for the altitude is over 500-1000 meters. Our transformer oil filtration unit can remove the free and dissolved water, gas and particles from oil high-efficiently, and improve dielectric value of treated oil to be higher than 75~85KV, and increase the pressure force and quality of oil, make sure the electric device running safely. This oil purification system is very suitable for the large power electric equipment and transformers.

Advantages

1. ZYD-50 thickened weather-proof type double-stage vacuum transformer oil filtration machine can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally.
2. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.
3. Besides, the thickened metal material type weather-proof house can protect the machine in clean condition, dust-proof and water-proof, it is more suitable for onsite project use.
4. This ZYD-50 machine is equipped with PLC programing and touch operation screen, it can running fully automatically by one-touch operation.
5. It is equipped with digital oil flowmeter, users can set the oil flowrate on the PLC screen as needed.
6. It is also equipped with an on-line moisture sensor, which can monitor the oil moisture content and shows the data on PLC screen; The user can set the required PPM data on PLC screen, and the machine will shut down automatically after reached the PPM data required.
Etc.
