Double Stage High Vacuum Transformer Oil Filtration Machine Customized Type
Application
REXON ZYD-200(12000 Litres/Hour) Transformer Oil Filtration Machine is designed for transformer oil filtration & transformer vacuum pumping of various on-site projects of power transmission and generation stations. It can remove trace water, gas and impurities from insulating dielectric oil/transformer oil, improving the insulating oil performance index, very suited for purification for high voltage insulating oil of 110KV, 220KV, 500KV, 750KV, 1000KV from power transmission equipment. It can effectively prolong the lifespan of transformers, enhance their operational efficiency, and improve reliability. Additionally, regular oil filtration can reduce maintenance costs and failure rates, minimizing downtime.

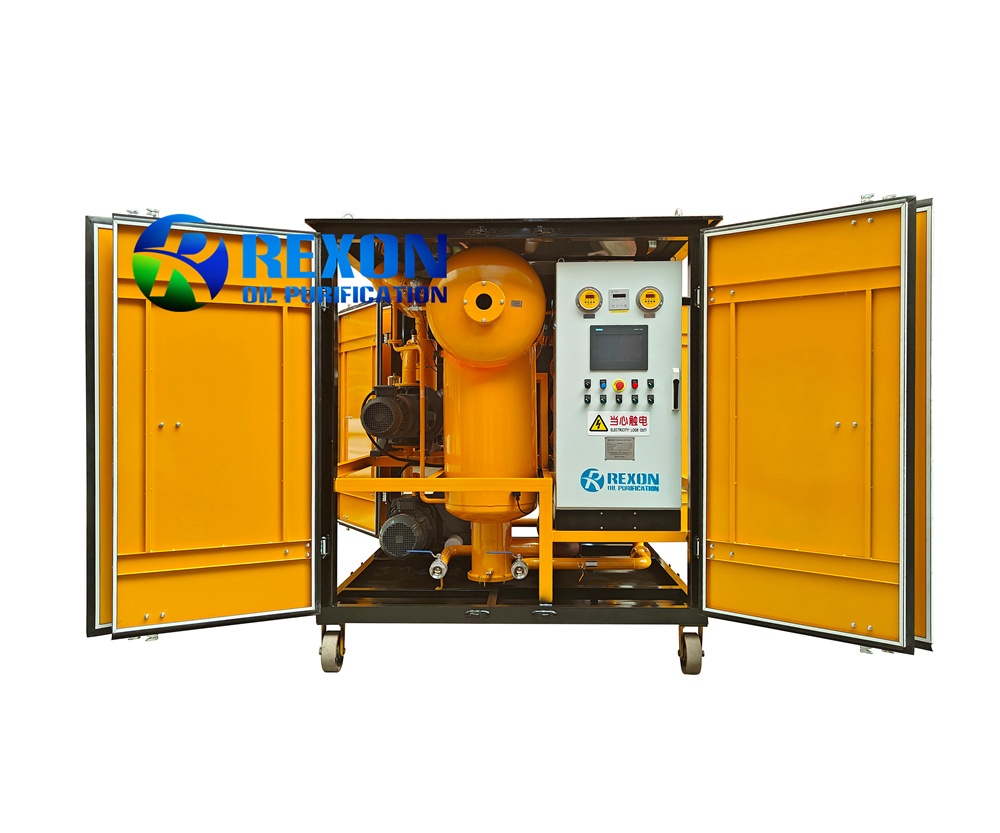

This machine is a custom-made oil filtration machine, equipped with a thickened weatherproof and dustproof enclosure to protect the machine in a clean state. The whole machine has yellow and black colors, which are customized warning colors according to customer requirements. All of our equipment can be customized, including the configuration of the main parts of the equipment, color, online testing instruments, etc.
Features1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances and other degraded substances from the oil.
2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 70KV.
3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.
4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.
5. Heating by carbon fiber infrared heating system which is the most advanced heating technology, the unique heater structure heats the oil uniformly and easily controlled, it gives out the heat quickly (in 3 seconds after power on) and efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.
6. The use of multi-stage high β-value compound progressive filtration system can effectively filter the fine particles of mechanical impurities in the oil.
7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.
8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system and safety interlock control ensure long-term, safe and reliable operation of the equipment.
Technical Parameters
