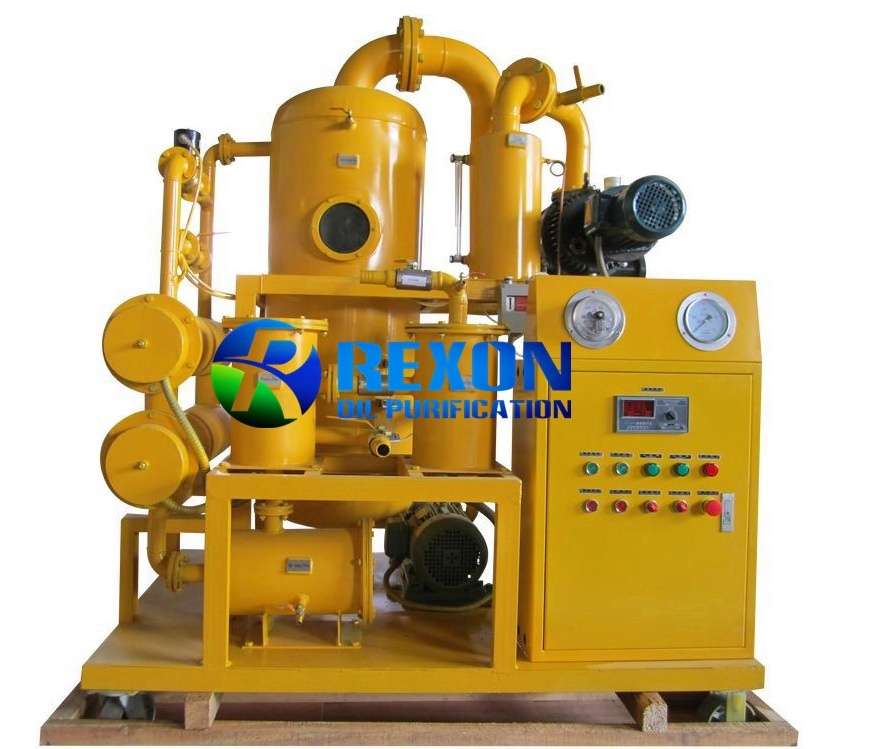

High Vacuum Transformer Oil Treatment Machine Series ZYD

Preview

Insulating oil and transformer oil performance mainly decided by oil's water content, gas, and particles. If the water is not saturation in the oil, it appears as the molecular form; If the water is saturation in the oil, it appears as the liquid form and stay at the bottom of container.

Application

High Vacuum transformer oil treatment machine is mainly used for removing trace water, gas and impurities from old and new insulating oil, transformer oil, and improving the insulating oil performance index. It is mainly applied to oil purification of 110KV,220KV,500KV,750KV,1000KV power transmission equipment insulating oil. Also it applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum filling.

Advantages

The transformer oil treatment machine and the oil tank or transformer in a connecting circulation, which will be evacuated by the vacuum pump set of oil treatment machine. Under the high vacuum and heated condition, the moisture in oil will become vapor. The gas and water which dissolved in the oil will become degassed and exhausted by vacuum pump set.

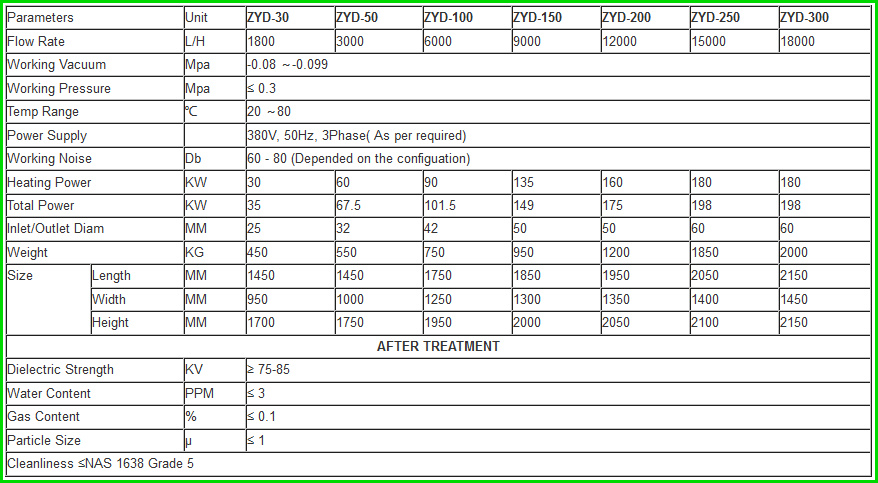

Technical Parameters
