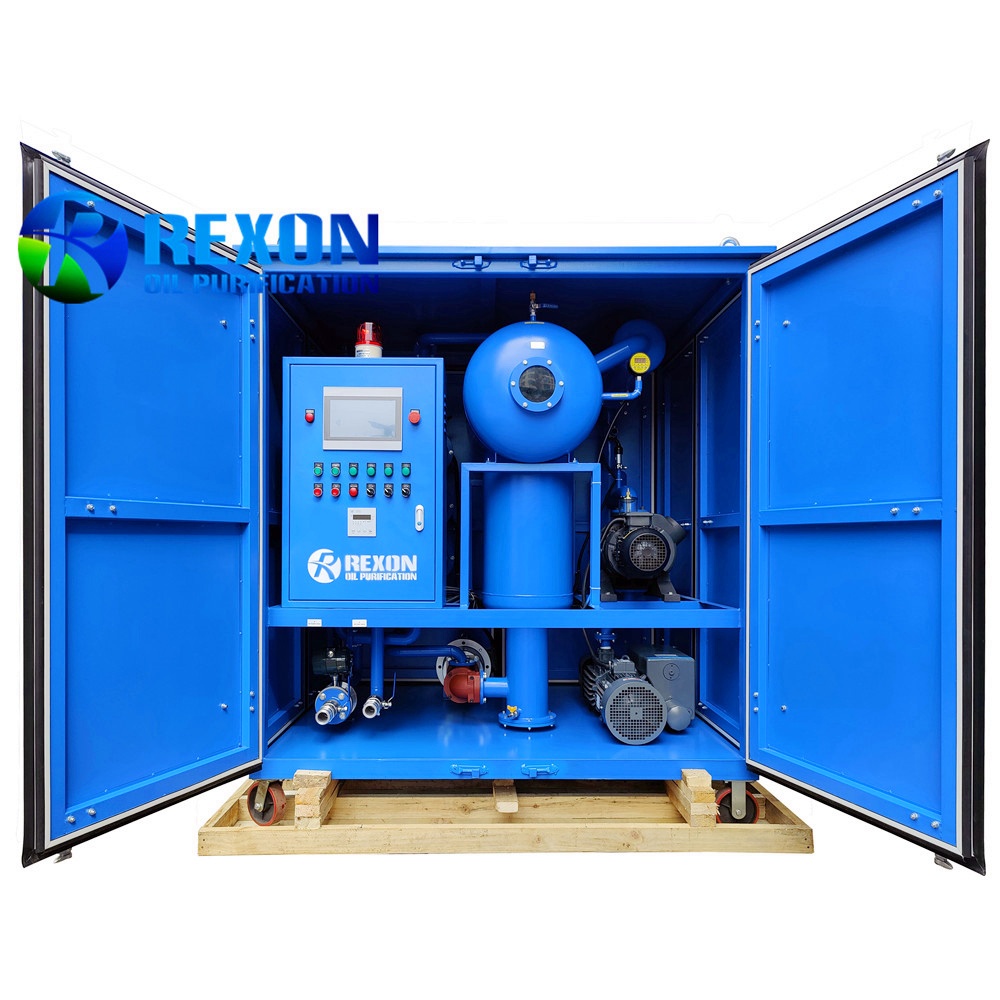

REXON ZYD-4000 is specially used for on site transformer oil filtration, transformer evacuation and oil filling for transformers and oil tanks.


  • Product No.: ZYD-4000(4000LPH)

Details

ApplicationREXON double stage high vacuum oil purifier machine ZYD-4000 is specially used for on site transformer oil filtration, transformer evacuation and oil filling for transformers and oil tanks. This oil filtration equipment can completely filter and regenerate used and new insulating oil in energized or de-energized transformers even when transformer power above 110KV and altitude over 500 meters, as well as the mutual inductor oil, switch oil and so on. REXON ZYD-4000 oil purifier machine also can evacuate transformers with super high efficiency as an independent vacuum pumping system.
Features1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances and other degraded substances from the oil.
2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 70KV.
3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.
4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.
5. Heating by carbon fiber infrared heating system which is the most advanced heating technology, the unique heater structure heats the oil uniformly and easily controlled, it gives out the heat quickly (in 3 seconds after power on) and efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.
6. The use of multi-stage high β-value compound progressive filtration system can effectively filter the fine particles of mechanical impurities in the oil.
7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.
8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system and safety interlock control ensure long-term, safe and reliable operation of the equipment.

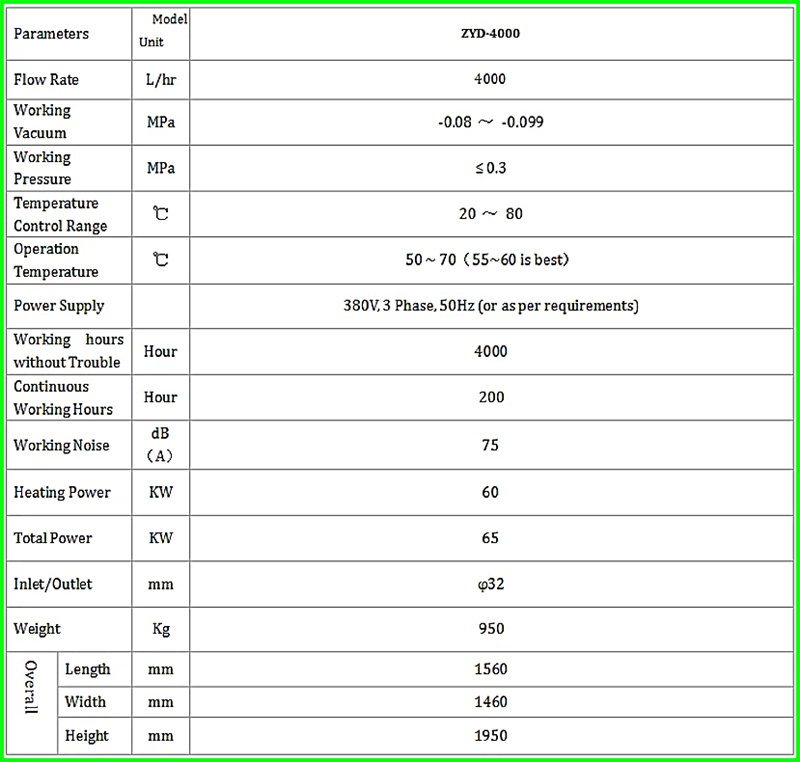

Technical Parameters
