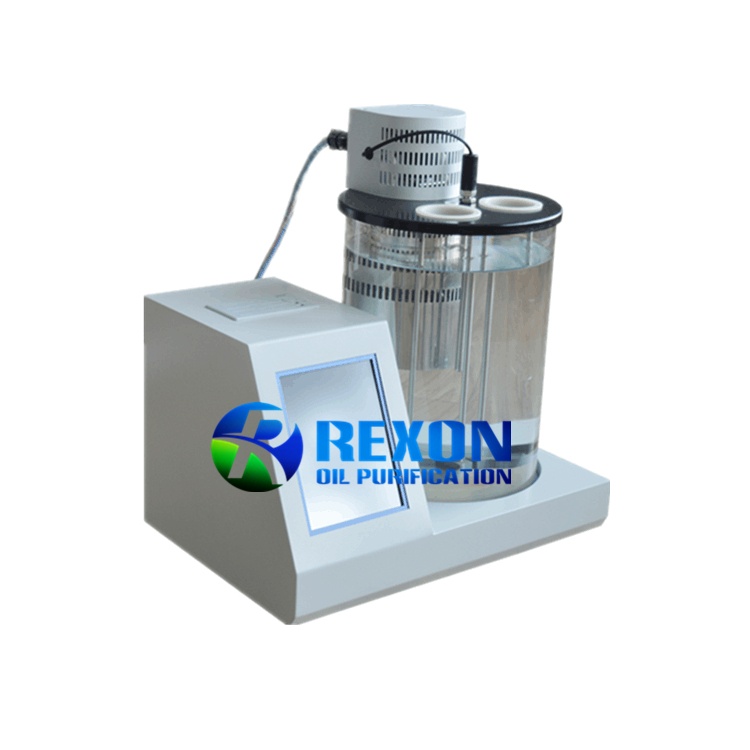

Automatic Oil Density Tester
IntroductionRNMD petroleum product density tester is designed and manufactured according to the standard method of ASTM 1500 and ISO3675:1998. It is used to measure the density of usually liquid crude oil or liquid petroleum products and other mixtures at 20ºC. If independent refrigeration unit for temperature control is not applied, the apparent density of samples can be measured at other temperatures, then converted into standard density at 20ºC as per the Petroleum Measurement Tables. It is widely used in petroleum, electric power, chemical industry, commodity inspection, scientific research and other departments.
The operating instructions of the built-in instrument on the screen make the operation easier.
It adopts advanced PID temperature control technology, temperature control is stability, and the temperature control accuracy can reach 0.01ºC.
It has double test holes, which can measure the density of two samples at the same time and improve work efficiency.
It has a constant temperature timing function, which can remind the operator to perform the next operation in time during the test.
It has an average calculation function, which can display the average value of two consecutive measurements, save and print the test results.
It has a data record query function, which can call up 1000 data records previously tested, which is convenient for comparison and analysis.
It has the function of dynamically displaying the working status of the instrument.
The instrument can be equipped with a Input Refrigeration Unit to achieve the cooling function, and the temperature of the water bath can be controlled at 20 °C (optional)
Major Technical Indicators
-Applicable Standard: ASTM 1500,ISO3675:1998
-Display Mode: 8- inch colorful LCD touch screen
-Measurement Range: 0~9.9999 g/cm3
-Temperature Control Range: room temperature~99.9ºC (10~99.9ºC if with Input Refrigeration Unit equipped)
-Temperature Control Precision: ±0.1ºC
-Resolution: 0.01ºC
-Printing Mode: thermal printing
-Experiment Records: 1000 Pieces
-Average: average of density of two consecutive measurements
-Power Supply: AC220V±11V, 50Hz±2.5
-Machine Power: 1500W
-Volume of Test Tube: 500 ml
-Number of test holes: double holes
-Environment Temperature: 5~35ºC
-Relative Humidity: ≤85%
-Weight: About 16 kgs
