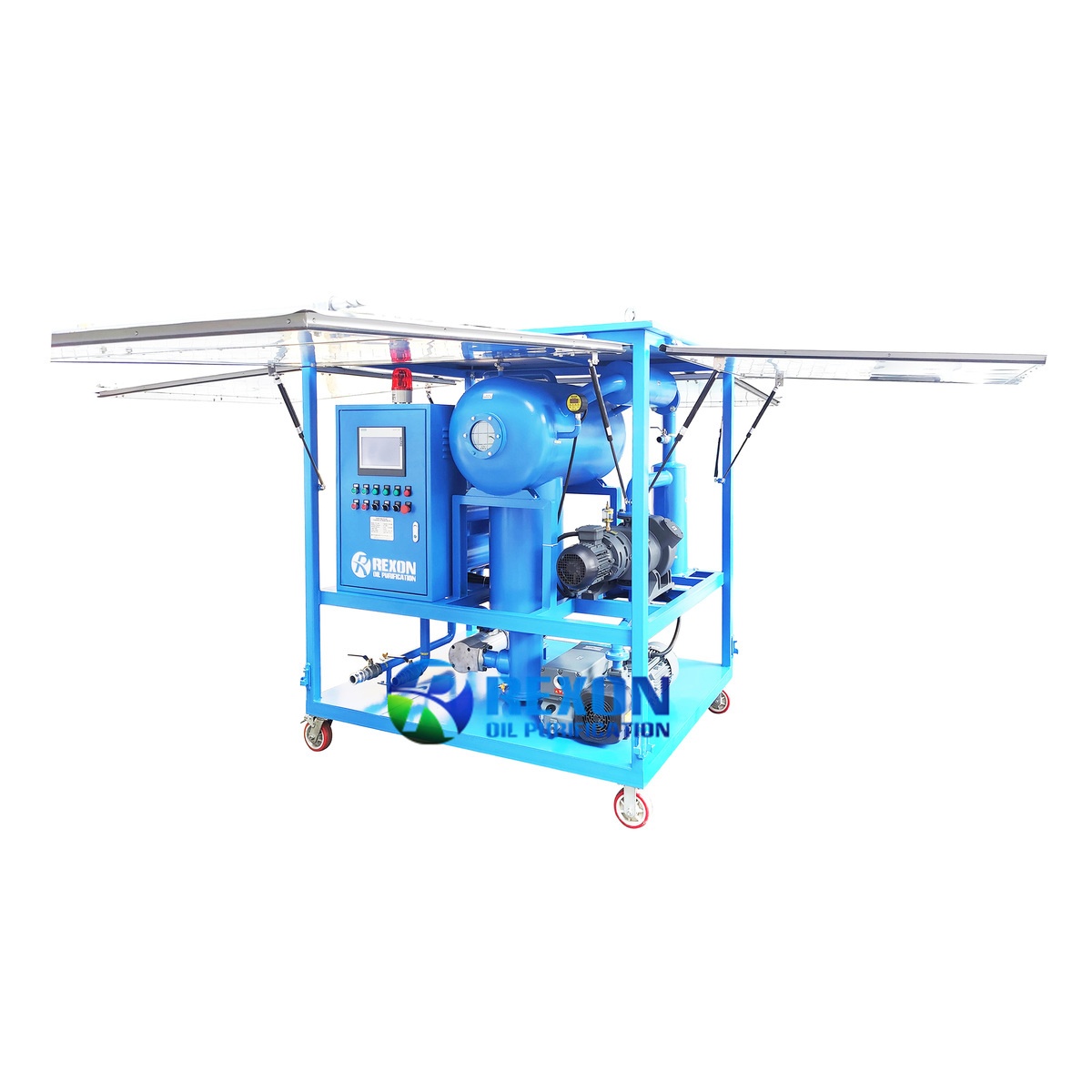

ZYD-100(6000L/H) Transformer Oil Filter Plant with Air Spring Support Type Enclosure

ZYD-100(6000L/H) Transformer Oil Filter Plant with Air Spring Support Type Enclosure
  • ZYD-100(6000L/H) Transformer Oil Filter Plant with Air Spring Support Type Enclosure
  • ZYD-100(6000L/H) Transformer Oil Filter Plant with Air Spring Support Type Enclosure
  • ZYD-100(6000L/H) Transformer Oil Filter Plant with Air Spring Support Type Enclosure
  • ZYD-100(6000L/H) Transformer Oil Filter Plant with Air Spring Support Type Enclosure

The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-effici


  • Product No.: ZYD-100(6000LPH)

Details

ApplictionREXON ZYD-100 Transformer Oil Filter Plant is mainly used for electric power department and industries to deal with transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.Function1. Vacuum oil dehydration and degassing, oil filtering, removing particles, free water, dissolved water, gas, acidity completely.
2. Transformer vacuuming
3. Transformer drying
4. Transformer oil filling
5. Transformer vacuum detecting
Details
REXON series ZYD vacuum oil filtration plant is made up of ultra-strong vacuum system (one rotary vane vacuum pump and one roots pump/air compressor), electronic control system, PLC program, constant temperature heating system, three high precision filtration system, oil high and low liquid level detection indicator, vacuum degree detection indicator, automatic d-foaming device, alarm system, automatic protection system and so on, which makes REXON series ZYD machine is a super high efficient oil filtration system for onsite transformer oil processing.
Technical Parameters
