Mobile Transformer Oil Purification System ZYD-WM-100

Capacity 6000LPH

-Double Stage Vacuum Dehydration

-Double Stage Vacuum Degassing

-Three Stage Filter to 1micron

-Thickened Heay Metal Material Weather-proof Enclosure

-Fully Automatic PLC System & Touch Screen

-Mobile trailer(4 wheels or 2 wheels based on model size)

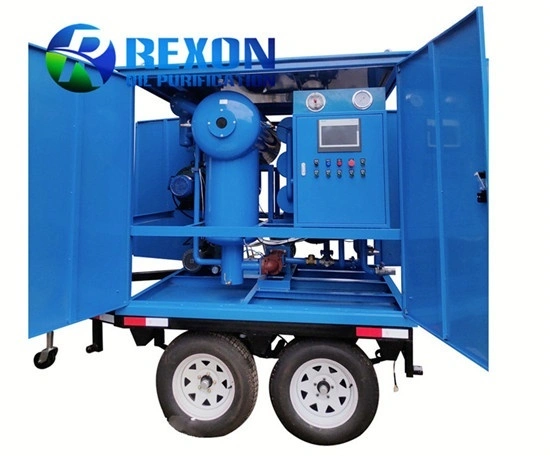

Rexon new type mobile transformer oil purification system ZYD-WM-100(6000LPH) takes aluminium alloy material as the full enclosure, and uses strong structure trailer with 4 big car wheels to equip with. The same functions with ZYD transformer oil purification plant, it can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from insulating oil effectively to improve oil's dielectric strength to be above 75~80KV. It is suitable for on-site transformer oil purification and oil maintenance for different places. Besides this, this system can also vacuuming transformers and oil injecting transformers.

1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances and other degraded substances from the oil.

2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 70KV.

3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.

4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.

5. Heating by carbon fiber infrared heating system which is the most advanced heating technology, the unique heater structure heats the oil uniformly and easily controlled, it gives out the heat quickly (in 3 seconds after power on) and efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.

6. The use of a multi-stage high β-value compound progressive and high precision filtration system can effectively filter the 1-micron fine particles of mechanical impurities in the oil.

7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.

8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system and safety interlock control ensure long-term, safe and reliable operation of the equipment.

Protection from external elements: This transformer oil purification system will equip with mobile trailer(4 wheels or 2 wheels based on model size) and combined with weather proof housing cover, which can move long distance for on-site oil filtration job, easy and steady for transport. Since it is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can use the machine in any weather and many circumstances for any on-site oil filtration project.

Versatility: this ZYD-100 can be used in various outdoor settings, such as substations, power plants, and other locations where transformers are installed. Its ability to operate in different weather conditions makes it a versatile solution for oil purification needs.
