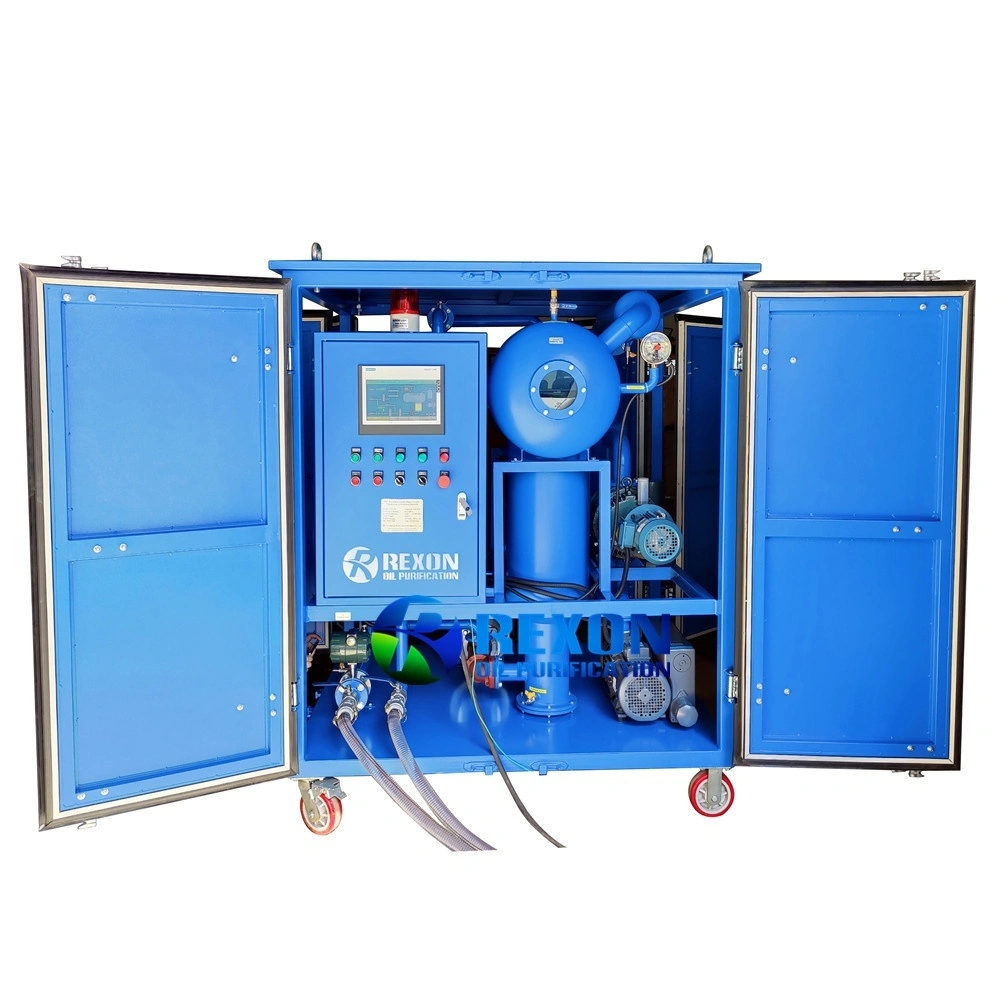

Thickened Weather-proof Type Double Stage High Vacuum Transformer Oil Filtration System

ZYD-50(3000LPH) Vacuum Transformer Oil Filtration System takes two stage high vacuum pumps as the powerful vacuum system, which can produce a great high vacuum of a limitation to be 5Pa. ZYD-50 equip with 3 stages filter elements to do a particles and impurities cleaning work high efficiently.

ZYD-50 transformer oil filtration system is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The transformer oil purifier machine is especially for purifying the insulation oil in all kinds of large power equipment that are above 110KV, especially for the altitude is over 500-1000 meters. Our transformer oil filtration unit can remove the free and dissolved water, gas and particles from oil high-efficiently, and improve dielectric value of treated oil to be higher than 75~85KV, and increase the pressure force and quality of oil, make sure the electric device running safely. This oil purification system is very suitable for the large power electric equipment and transformers.

● High-Efficiency Water and Gas Removal: The purifier employs a vacuum system to reduce the boiling point of water and gases, facilitating the removal of moisture and dissolved gases even at low temperatures.

● User-Friendly Design: REXON purifiers are often designed with user-friendly interfaces, allowing operators to monitor the process and easily control key parameters such as temperature, pressure, and flow rates. Many models come with automatic controls for ease of operation.

● Advanced Filtration Technology: The purifier is equipped with multiple filtration stages to remove both large and fine particles, ensuring the oil remains free from impurities that can affect transformer performance.

● Portable Models: Some REXON oil purifiers are portable, making it easier to perform oil purification at multiple locations or during routine maintenance schedules, especially in field operations.

● Energy Efficiency: REXON transformers are designed with energy-saving features, ensuring low operational costs by reducing energy consumption during purification.

● Robust Construction: These machines are built to handle the tough conditions of transformer oil purification, often using corrosion-resistant materials to ensure durability and reliability during operation.

1. ZYD-50 thickened weather-proof type double-stage vacuum transformer oil filtration machine can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally.
2. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.
3. Besides, the thickened metal material type weather-proof house can protect the machine in clean condition, dust-proof and water-proof, it is more suitable for onsite project use.
