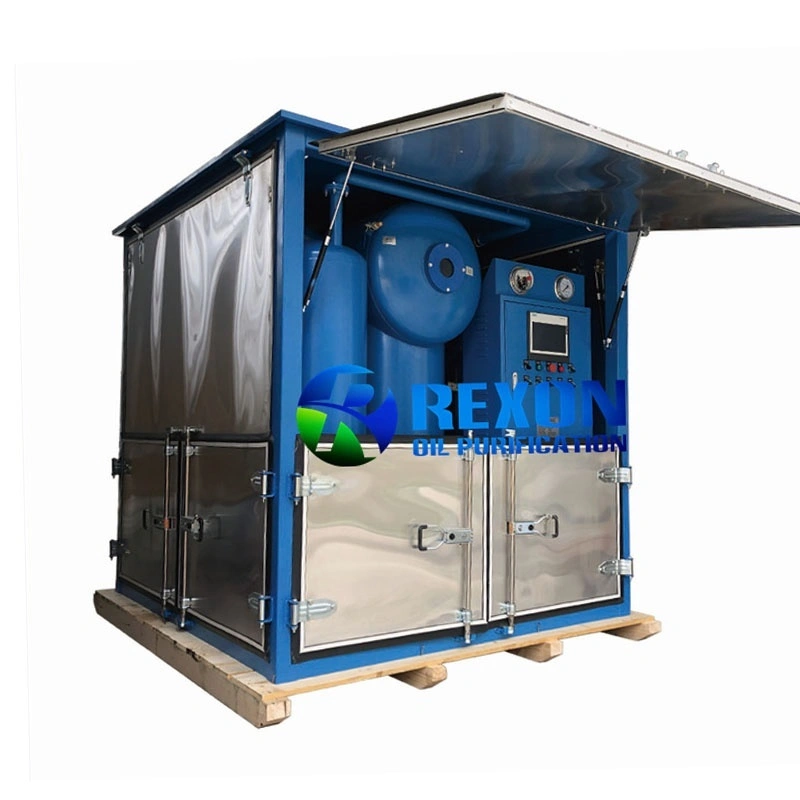

High Vacuum Type Transformer Oil Purification System with Full Enclosure

REXON high vacuum dehydration transformer oil filtration machine is used to deal with unqualified transformer oil, Insulation oil, insulating oil, switch oil and so on with big treatment capacity like 9,000L/H, 12,000L/H, 18,000L/H, 30,000L/H etc. Contaminated transformer oil, after being treated by our oil filter system, can meet the qualified indicators, just like the new oil that has not been polluted, can be reapplied to the transformer.

Benefits:

Removes Dissolved Moisture Transformer Oil

Reduces combustible gases and oxygen

Improves oil dielectric values

Improves transformer power factor

Extends oil service life

Extends transformer service life and reliability

1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances and other degraded substances from the oil.

2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 70KV.

3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.

4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.

5. Heating by carbon fiber infrared heating system which is the most advanced heating technology, the unique heater structure heats the oil uniformly and easily controlled, it gives out the heat quickly (in 3 seconds after power on) and efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.

6. The use of a multi-stage high β-value compound progressive and high precision filtration system can effectively filter the 1-micron fine particles of mechanical impurities in the oil.

7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.

8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system and safety interlock control ensure long-term, safe and reliable operation of the equipment.

REXON high vacuum dehydration transformer oil filtration machine adopts two-stage high vacuum system, high efficiency three-stage filter system, high-power low-temperature heating system, constant temperature heating control system, intelligent electronic control system, PLC control system, automatic oil level The detection system, the vacuum detection system, and the safety protection system, etc., REXON machines are constructed using the latest oil filtering technology and internationally renowned brand accessories.
