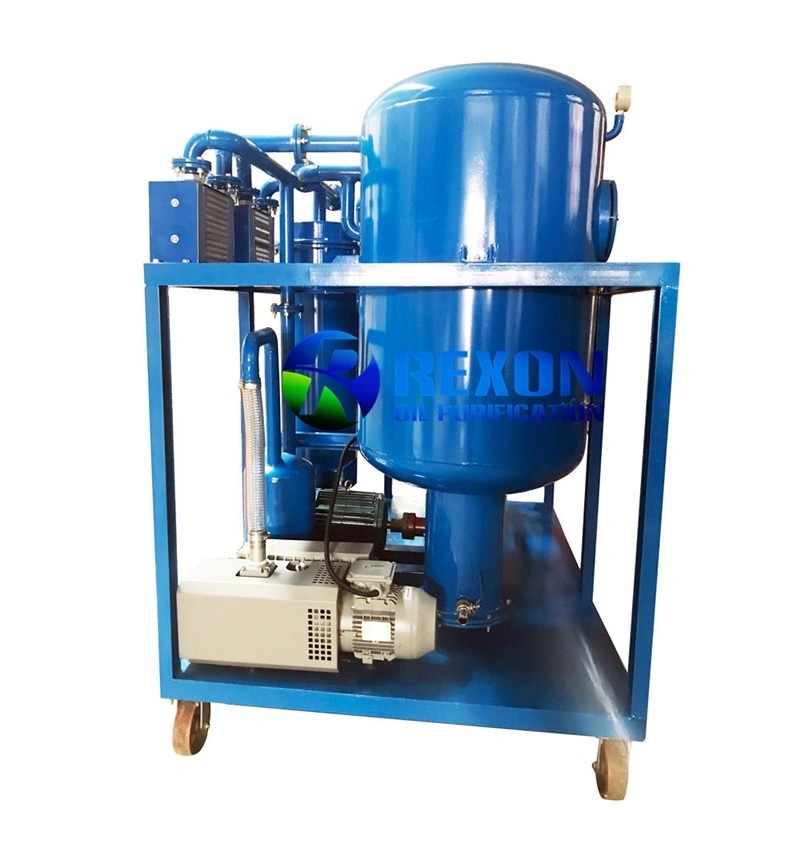

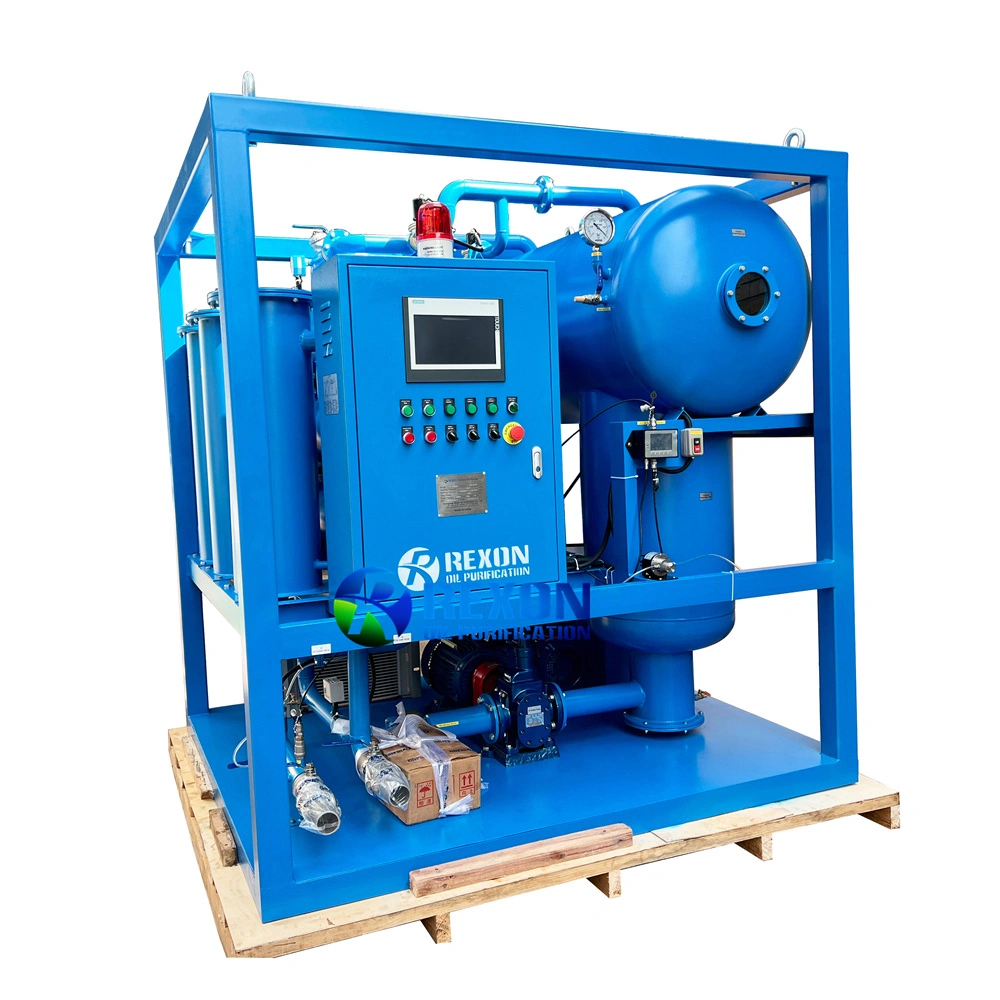

Vacuum Type Turbine Oil Filtration Plant TY-150(9000LPH)

Vacuum Type Turbine Oil Filtration Plant TY-150(9000LPH) is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This oil filtration plant, which can rapidly and effectively remove water, gas and impurities from oil, can break emulsification fast.

It aims at the nature of turbine oils of high water content, easy emulsification and high impurity content to make the oil recover the new oil's nature. The Automatic oil purifier model is installed with PLC (Programmable logic control system), which can control the equipment automatically at every stage of its process and ensure its process and ensure its safe operation on site and online without human supervision.

● Breaking emulsification thoroughly with high- molecule polymeric material, the value of breaking emulsification ≤15min (GB/F 7305).
● Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.

● With a distinctive impurity removal technique filtering through a double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 5(NAS1638).
● With the trapezoidal, spiral, automatic back flushing system.

● This Turbine Oil Filtration Plant TY-150(9000LPH) breaks emulsification thoroughly, and the oil is very difficult to emulsify again after treatment. Its dehydration volume is large, and it can absorb water online.

● This TY-150 can effectively extend the lifetime of oil and protect the turbine and other machinery, which has a lubrication system, from damage.

● Since this TY-150 machine is equipped with an online moisture tester and an online particle counter, it can detect and shows the oil moisture PPM data and oil cleanliness degree data in real-time. It is convenient for users to know the situation of turbine oil.

● PLC programing and big touch operation screen, make the operation more easily.

● Installed with auto auto-alarming system, which will give out an alarm and stop the whole machine when the electrical motor is overloaded, the vacuum pump and oil pump are overloaded, the heater is overloaded, and the pressure is abnormal.
