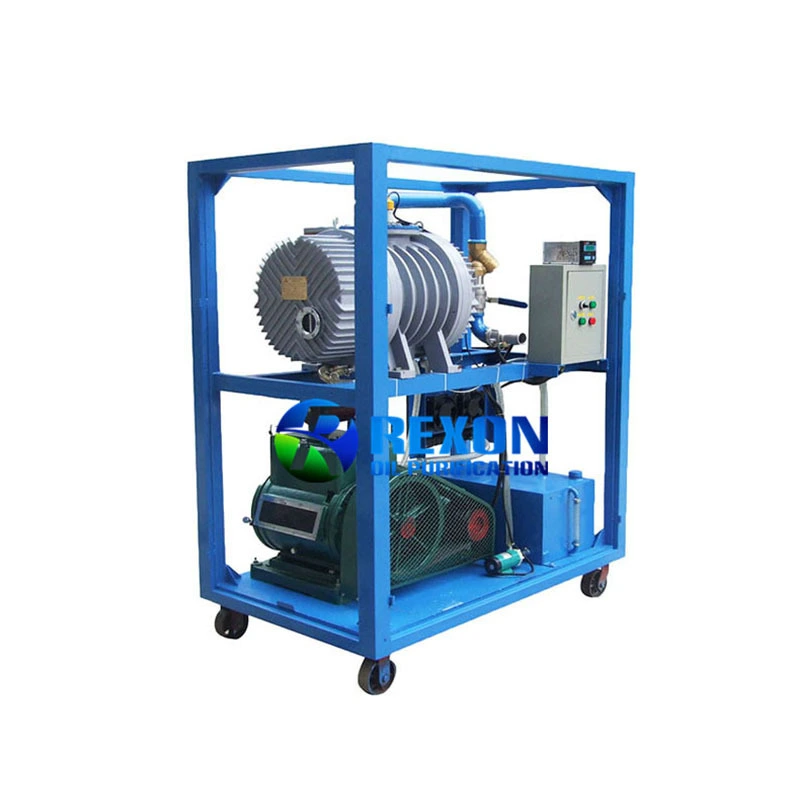

RNVS-600(2160M³/Hr) Big Capacity Transformer Vacuum Evacuating Machine

REXON RNVS-600(2160m³/hr) transformer evacuating machine/ vacuum pump set is a new type of vacuuming equipment developed and produced by our company. It is widely used in the process of producing vacuum condition for various equipment. Its vacuum pressure can reach much lower than any other products in the same field.

It is widely used in the vacuuming process in the production, installation and maintenance of many electric power equipment, like electric power transformer, capacitor etc., It can offer high efficiency vacuum evacuating, vacuum injection and vacuum oiling for transformers, and it is also used in the technical process of industrial production, such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc.

RNVS-600 has our REXON unique synchronous start function. Its Vacuum Pump & Roots Vacuum Pump/booster start work at the same time/synchronously, and the efficiency is increased by 40%.
The equipment automatically adjusts the pressure difference between the inlet and outlet of the Roots Vacuum Pump to ensure that the outlet of the Roots Pump is always at the highest pressure, and the inlet gas of the vacuum pump always maintains the highest compression ratio. A liquid-cooled heat dissipation device is installed at the exhaust port of the Roots pump, which not only prevents the Roots Pump from overheating, but also reduces the volume of compressed gas at the outlet of the Roots Pump. Other brands of Roots Vacuum Pumps need to be reduced to 1000-2000pa before starting.

1. The machine adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure, are obviously better than any other devices.

2. Working vacuum range and maximum vacuum degree are superior to other products.

3. It's equipped with a control panel for controlling the operation of pumps.

4. Consist of necessary high quality pipelines and valves to operate the system.

5. It is installed with vacuum gauge for accurate indication.

6. It adopts automatic vacuum relay for automatic control.

7. Stable and reliable operation, low noise, and easy to move.
