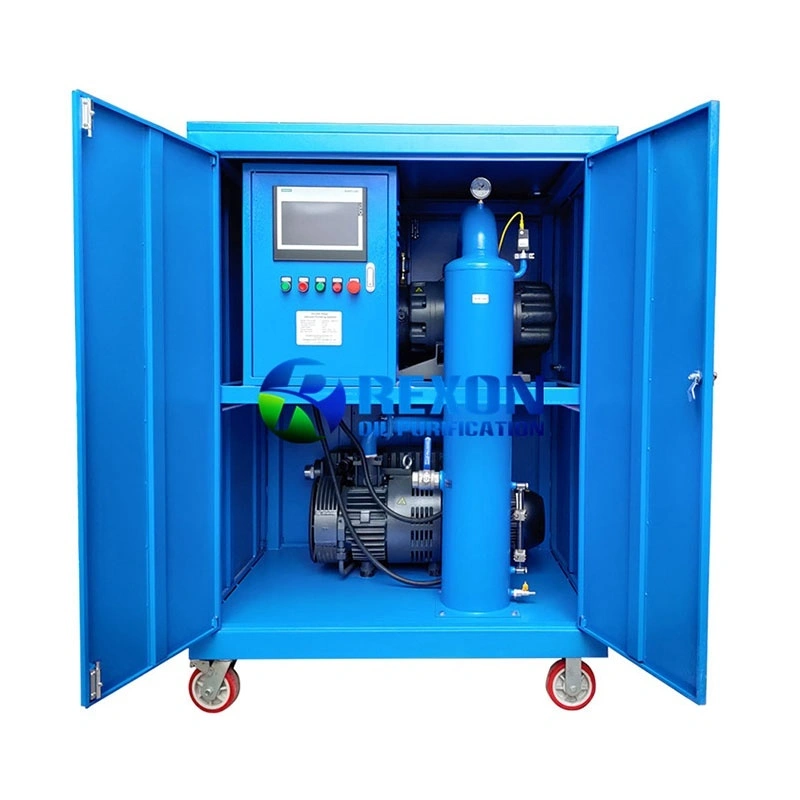

Automatic and Weatherproof Type Transformer Vacuum Pumping Set RNVS Series

REXON RNVS double stage vacuum transformer vacuum pumping machine takes high efficient vacuum pump components which can offer a super fast vacuuming speed for transformers maintenance.

Inquiry

Write a Review

More Choices

Go to Store

Deluxe Type High Vacuum Transformer Evacuating Machine with European Brand Main Parts

Add to cart

Inquiry

RNVS-300(1080M³/Hr) Transformer Vacuuming System with LEYBOLD Pirani Vacuum Gauge

Add to cart

Inquiry

RNVS-150(540M³/Hr) Automatic Transformer Vacuum Evacuation System with PLC Control

Add to cart

Inquiry

RNVS-70(252M³/Hr) Small Transformer Vacuum Pumping Machine Transformer Evacuation System

Add to cart

Inquiry

Product Details

The REXON RNVS Series Automatic and Weatherproof Transformer Vacuum Pumping Set is a newly developed high-performance vacuum evacuation system designed for creating and maintaining high-vacuum conditions for a wide range of electrical and industrial applications. Engineered with advanced vacuum technology, the RNVS series is capable of achieving significantly lower ultimate vacuum pressure compared with conventional vacuum pump sets in the same field.
The RNVS series is widely used in the manufacturing, installation, and maintenance of power equipment, especially in the vacuum processing of power transformers, reactors, capacitors, and related electrical apparatus. It provides high-efficiency vacuum evacuation, vacuum oil filling, ensuring reliable insulation performance and extended equipment service life.

In addition to power industry applications, the RNVS vacuum pumping set is also suitable for various industrial vacuum processes, including:
-Vacuum drying
-Vacuum distillation
-Vacuum welding
-Vacuum coating and surface treatment
With its automatic control system and weatherproof design, the RNVS series is ideal for both indoor and outdoor operation, offering stable and reliable performance in demanding site conditions.

1. The machine adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure, are obviously better than any other devices.

2. Working vacuum range and maximum vacuum degree are superior to other products.

3. It's equipped with a control panel for controlling the operation of pumps.

4. Consist of necessary high quality pipelines and valves to operate the system.

5. It is installed with Pirani vacuum gauge for accurate indication.

6. It adopts automatic vacuum relay for automatic control.

7. It has PLC fully automatic control system and big touch screen, one-touch to start the operation.

8. Stable and reliable operation, low noise, and easy to move.

9. Weatherproof & dustproof design, suitable for outdoor and harsh working environments.

Model	RNVS-70	RNVS-150	RNVS-300	RNVS-600
Total Vacuum Pumping Capacity	252 m3/h	540 m3/h	1080 m3/h	2160 m3/h
First Stage Rotary Vacuum Pump Origin & Brand & Model Pumping Capacity	Option A: China JOYSUN Model X-63	Option A: China JOYSUN Model X-100	Option A: China JOYSUN Model X-200	Option A: China JOYSUN Model X-300
	Option B: Germany GVS-65 Or : SV-65 65m3/h	Option B: GermanyATLAS: GVS-100 Or: SV-100 100m3/h	Option B: GermanyATLAS: GVS-200 Or :SV-200 200m3/h	Option B: GermanyATLAS: GVS-300 Or : SV-300 300m3/h
---Second Stage Pump Roots Vacuum Pump Origin & Brand & Model ---Pumping Capacity	ZJP-70 Brand: China HUAXINNANGUANG 252m3/h	ZJP-150 Brand: China HUAXINNANGUANG 540m3/h	ZJP-300 Brand: China HUAXINNANGUANG 1080m3/h	ZJP-600 Brand: China HUAXINNANGUANG 2160m3/h
Total Electric Power (kw)	1~5 Depends on Roots Pump/Booster Model
Power Supply	380V (3phase, 4wires), 50Hz, - or as per your requirement
Vacuuming Connection Port Diameter (mm)	DN40	DN50	DN60	DN65
Power supply	380V, 3Phase, 50hz (or as per user’s option)
Overall Dimensions (m)	1.20×1.10×1.51	1.32×1.02×1.57	1.60×1.07×1.61	1.80×1.30×1.92
