1 Micron High Precision Transformer Oil Filter Machine

REXON ZYD-100 high precision oil filter machine is mainly used for:

Transformer Oil Filtration and Purification: it is primarily used to purify transformer oil in both new and in-service transformers, improving the oil’s dielectric strength, cooling capability, and overall reliability.

Power Stations and Industrial Facilities: Commonly used in power generation and distribution facilities, as well as industrial plants, to maintain high operational efficiency and prolong transformer life.

Oil Regeneration for Electrical Equipment: Suitable for various electrical equipment that relies on oil for insulation and cooling, such as circuit breakers, tap changers, and switchgear.

Emergency and Maintenance Services: Used by service companies and utility providers to perform on-site oil purification and maintenance, reducing downtime and improving equipment reliability.

1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances and other degraded substances from the oil.

2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 70KV.

3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.

4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.

5. Heating by carbon fiber infrared heating system which is the most advanced heating technology, the unique heater structure heats the oil uniformly and easily controlled, it gives out the heat quickly (in 3 seconds after power on) and efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.

6. The use of a multi-stage high β-value compound progressive and high precision filtration system can effectively filter the 1-micron fine particles of mechanical impurities in the oil.

7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.

8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system and safety interlock control ensure long-term, safe and reliable operation of the equipment.

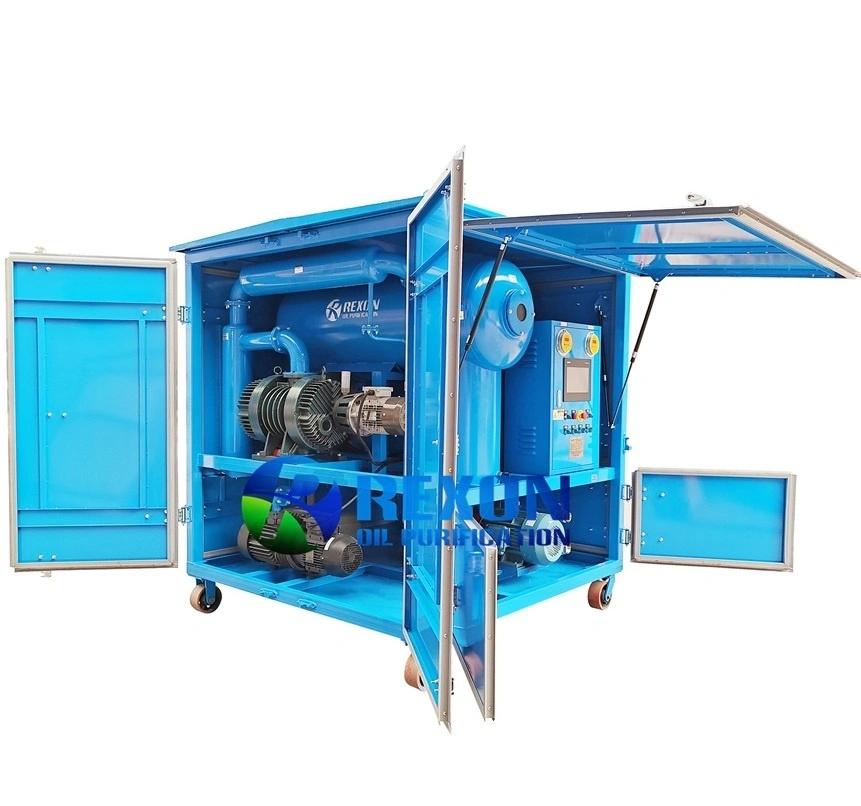

Protection from external elements: This ZYD-100 is a new design weather-proof insulating oil filtration machine, has two-door open sidewards, and two-door open upwards, it not only ensures that the oil purifier can continue to operate effectively and reliably in adverse weather conditions such as rain, snow, extreme temperatures and high humidity, but also allows users to operate and use the machine more conveniently.

Versatility: this ZYD-100 can be used in various outdoor settings, such as substations, power plants, and other locations where transformers are installed. Its ability to operate in different weather conditions makes it a versatile solution for oil purification needs.
