Fully Automatic Coalescing Separation Oil Purifier

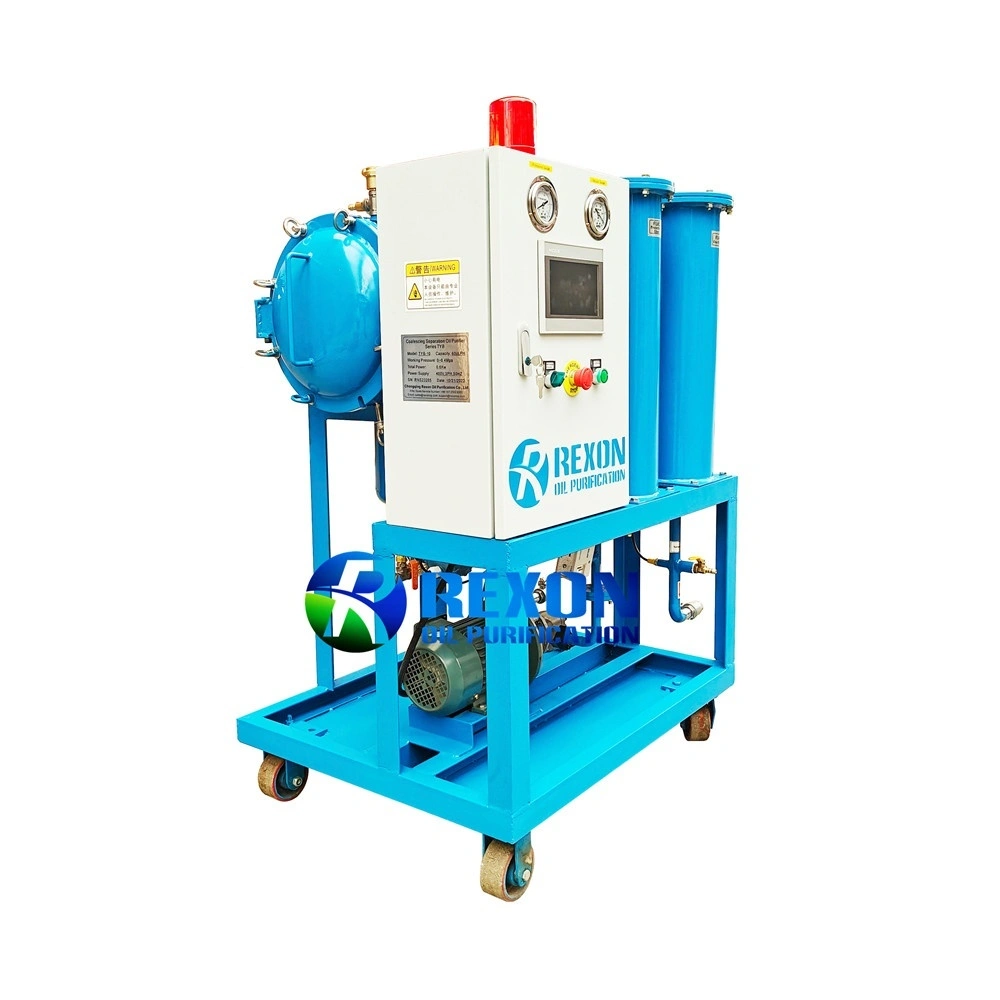

REXON TYB-10 fully automatic coalescing separation oil purifier is a specialized equipment used for low viscosity oil purification and filtration, such as turbine oil, light fuel oil, diesel oil, etc. It can quickly remove particle impurities and water, and free water from oil, making the separation efficiency reach more than 95% without heating.

In addition, it is also equipped with PLC programming and touch screen, and the simple and elegant human-computer interaction interface makes operation very easy. What's more, it is also equipped with a fully automatic drainage system, which can automatically drain the water separated from the oil, which is very efficient and saves manpower.

1. TYB series oil purifier adopts special coalescence-separation filter, which offering much more higher water removing efficiency than other types of purifiers.

2. Without vacuum heating and high-speed centrifugation.

3. Reduce water content to less than 100 PPM or less.

4. As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.

5.Trolly type, easy to move and operate in workshop.

1. TYB-10 coalescing separation oil purifier uses advanced coalescing-separation filter element, water separator, and high precise degree fine filter together in an integrated system to make a high efficient oil demulsification and oil dehydration function, which can remove large of water and particles without heating, creates the fastest dehydration speed, and clean the oil by multistage filtration.
2. It is equipped with PLC fully automatic system and touch screen, once the parameters are set in the program, the equipment can run automatically. In addition, if there are any abnormalities, such as system overpressure, filter element being clogged, etc., the machine will issue an alarm and automatically shut down, and the PLC screen will prompt specific errors.

3. Fully automatic water discharging. This purifier is controlled by PLC system, the water removed from the oil will be discharged from the water tank fully automatically.
4. It is equipped with 4 castors, very convenient for movement.
5. It’s easy and simple to move and operate the machine.
