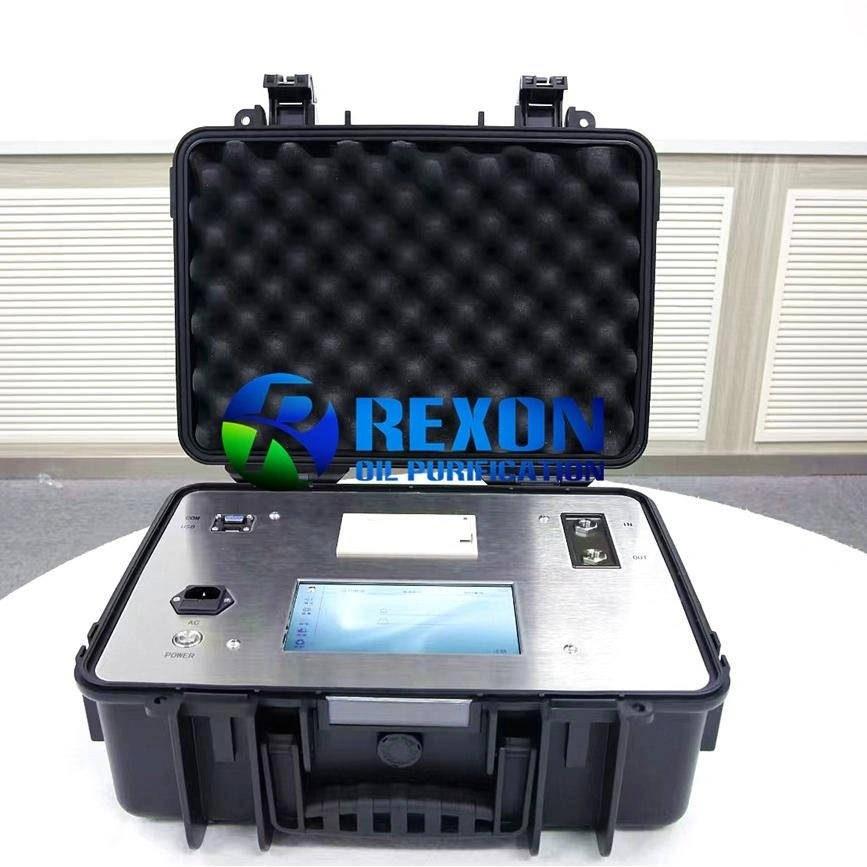

REXON Portable Oil Particle Counter Model LPC-P6

REXON LPC-P6 portable oil particle counter is designed on the principle of light resistance (shading method) and is used to detect the size and number of particles in the liquid. It can be widely used in aerospace, aviation, electric power, petroleum, chemical industry, traffic, port, metallurgy, machinery, automobile manufacturing and other fields in the hydraulic oil, lubricating oil, transformer oil, insulating oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluid solid particle pollution tests such as oil, And the detection of insoluble particles in organic liquid and polymer solution.

1. The photoresistance (shading) method test principle specified by the International Hydraulic Standards Committee

2. High-precision laser sensor, wide test range, stable performance, low noise and high resolution

3. High-precision metering pump sampling method, adjustable sampling speed, high sampling volume accuracy

4. The pipeline uses 316L and PTFE materials to meet the detection of various organic solvents and oil products

5. For laboratory or field measurement, optional pressure reducing device for online high pressure measurement

6. It can be connected to the pressure chamber to form positive / negative pressure to achieve the detection of high viscosity samples and sample degassing

7. Can use standard sampling bottles, sampling cups and other sampling containers, or directly connect to the hydraulic system for online testing to meet the testing requirements of different industries

8. Built-in multiple calibration curves, compatible with all common standards at home and abroad for calibration

9. Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E, and ГOCT17216 and other commonly used standards, support custom standard tests, and set the required standards according to customer needs

10. 1000 particle size channels can be set to facilitate particle size analysis

11. Built-in data analysis system, can automatically determine the sample level according to the standard, with automatic data processing and printing functions

12. Color touch screen operation, Chinese input, with preset, input, modification, storage functions, easy and fast operation

13. With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and USB can also be used for data storage

14. Built-in lithium battery, suitable for field work, can be used without external power supply

15. Embedded design, high strength shell, easy to carry, suitable for all kinds of construction machinery

Light source: semiconductor laser

Particle size range: 0.8-600μm (calibrated according to ACFTD calibration 1~100μm or ISO MTD calibration 4~70μm(c))

Detection channels: 64, arbitrarily set particle size

Sampling volume: 0.2-1000ml

Sampling accuracy: better than ±1%

Sampling speed: 5-80mL/min

Cleaning speed: 5-80mL/min

Cleaning volume: can be set between 0ml and 90ml

Counting accuracy: error less than ±5%

Resolution: ≤10%

Repeatability: RSD<2%

Limit coincidence error: 12000-40000 particles/mL

Temperature acquisition (optional): -40~100ºC   Accuracy: ±0.5ºC

Moisture (optional): Water activity acquisition: 1~100%RH; Accuracy: ±1%RH

Absolute water content: 1~360ppm; Accuracy: ±10ppm

Viscosity (optional): 0.5~500 cSt Accuracy: ±2%

Offline detection viscosity: ≤100cSt (optional pressure bottle sampler with maximum viscosity up to 400cSt)

Pressure range: low pressure 0-0.6MPa, high pressure up to 42MPa (optional pressure reducing valve)

Online detection interval: arbitrarily set

Instrument screen size: 7 inches

Tablet size: 10 inches (optional)

Tablet system: win10 professional system TYPE-C to DB9 data cable connected to the instrument serial port

Flash: 64GB

RAM: not less than 4GB DDR3L

Test sample temperature: 0ºC~80ºC

Working temperature: -20ºC~60ºC

Storage temperature: -30ºC~80ºC

Power supply: AC100-240V, 50/60Hz

Battery capacity: 5200mAh

Battery operation time: 6-8 hours

Dimensions: 420×326×182mm

Weight: 9kg
