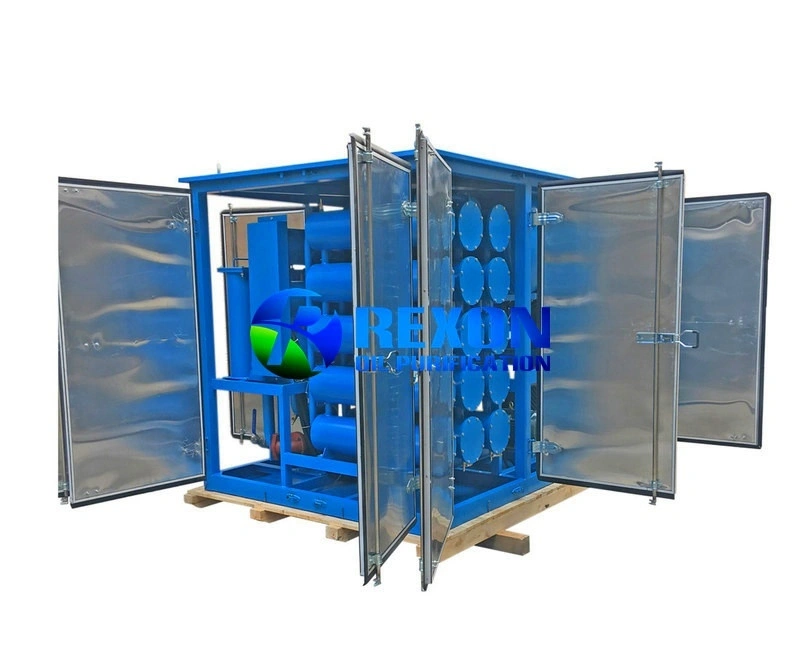

Aging Transformer Oil Regeneration Vacuum Dehydration Machine, Used Insulating Oil Recycling Plant ZYD-II-150(9000LPH)

REXON Aging Transformer Oil Regeneration Vacuum Dehydration Machine, Used Insulating Oil Recycling Plant ZYD-II-150(9000LPH) is applied to regenerate various of unqualified insulation oils including aging transformer oil specially for the power which is above 110KV, mutual inductor oil, switch oil and so on. It takes vacuum dehydration and degassing system, multistage filtering system, heating system, PLC auto control system, eletrical system with protection devices, etc, and fuller's earth filter groups to regeneration aging old transformer oil to be new. Fuller’s earth treatment will remove both acid and impurities in the oil. This process corrects the acid number as well as the colour. Reclamation of oil with a high acid content consists of needs fuller’s earth treatment.The oil is regenerated by passing through a Fuller’s Earth filter medium for molecular filtration.Contaminants and oil degradation products are trapped in the granules of the sorbent. After sorbent saturation, the ZYD-II unit automoatically switches to sorbent reactivation mode to remove contaminants from the sorbent into a special collector and charcoal filter.

Function:

Vacuum oil dehydration and degassing, oil filtering, removing particles, free water, dissolved water, gas, acidity completely.

After-sales Service: Free factory training & Engineers available for on-site commissioning.

Warranty: 2 Years

Oil Data After Process:

Impurity size after process: ≤1 micron

Gas content after process: ≤0.1%

Moisture content after process: ≤50 PPM

1. This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.

2. The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate.

3. High vacuum limiting vacuum less than 5PA, working vacuum less than 35PA.

4. High absorption speed, absorption speed power more than 333L/Sr.

5. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively.

6. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect.

7. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.

8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment.

9. The oil of any grades can be treated on line at the working site.

10. The Automatic oil purifier model is installed with PLC (Programmable logical control system) which can control the equipment automatically to every stage of its process and ensure its process and ensure its safe operation on site and on line without human supervision.

11. Can be operated both on-line and off-line.

12. Equip with BZ oil regeneration device to clean out the acidity matters from oil, refresh oil to be new.

*Besides Double-Stage High-Efficiency Vacuum Insulation Oil purifier's function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid- alkali water-solubility.
