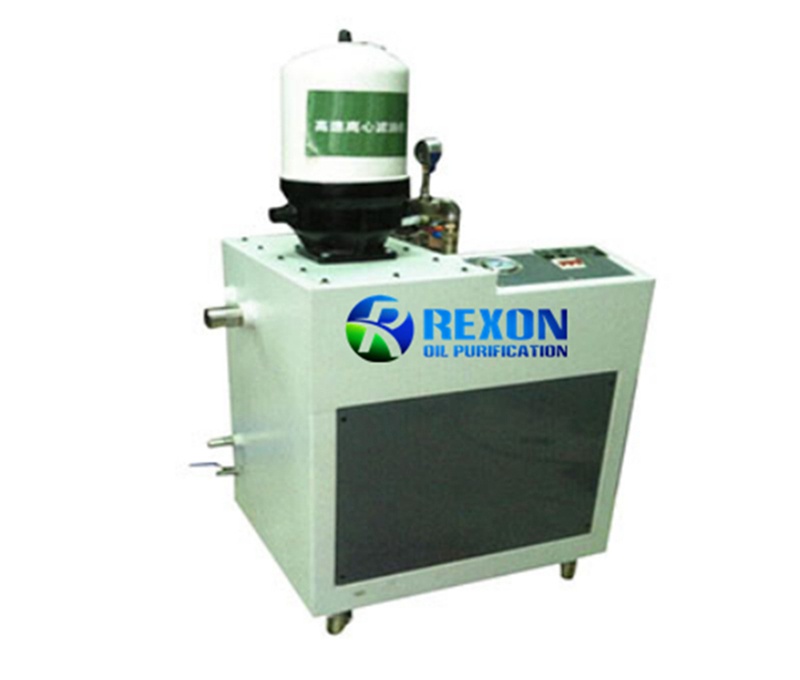

Rexon Centrifugal Rotary Oil Purifier FM-600
Application
Rexon FM centrifuge rotary oil purifier can be widely used in the maintenance and purification of various industrial oils including: cutting oil, hydraulic oil, lubricating oil, engine oil, pumping oil, hot kerosene, quenching oil, forging oil, steam turbine oil, anti-rust oil, gear oil, hydraulic transmission oil, cooling oil, cylinder oil, rolling oil, circulating oil, locomotive special oil,heavy oil, compressor oil, cleaning oil, heat transfer oil, etc...
Features
- Extend the service life of machinery
- Online operation, no need for special care.
- Extended oil change interval to save costs
- The structure is simple, the maintenance is convenient, the service life is long, without any consumables.Can remove 0.26um particle impurities.
- No filter element, no consumables or replacement parts, just regular cleaning.
- Thereby greatly reducing the use and maintenance costs.
- It can remove solid impurities in high-viscosity oil and highly polluted oil.
- Change the original traditional filtration method to remove the fine particles and sludge suspended in the oil in the machine.
- Extend the service life of machinery and equipment, reduce wear and parts replacement.
- All the key parts are imported components to ensure stable operation.
Machine Parameter
Model |
FM600 |
FM400 |
Capacity(L/Hr) |
6000 |
4500 |
Oil inlet caliber(mm) |
25.4 |
25.4 |
Storage Volume(cm3) |
6530 |
4160 |
Centrifugal speed (rpm) |
Above 6000 |
Above 5000 |
Power(kw) |
2.2 |
1.5 |
Dimension(mm) |
665*535*1075 |
625*445*1230 |
Weight(kgs) |
108 |
96 |
