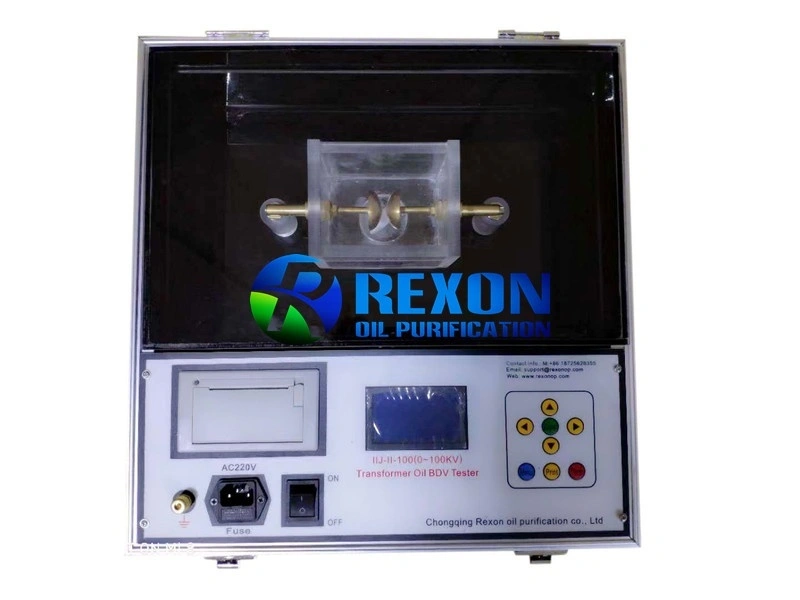

Fully Automatic Insulating Oil BDV Tester Series IIJ-II

IIJ-II series fully automatic oil tester is apply to test the insulating oil's dielectric strength, from 0 to 60KV, 80KV, 100KVBDV value testing. It is designed as per the requirement of IEC156 Testing Method of Insulation Oil Medium Strength, which via proper programming, has functions of auto boosting, step down, stirring, display, and print out.  After the breakdown of the oil medium, the HV break off will operate within 10 seconds to enable an auto isolation of the control system partly; this effectively safeguards the personnel security and equipment safety.

Dimension:

Before packed:  475 × 485 × 485 mm

Net Weight:  45 KGS

After packed:    490 × 495 × 495 mm

Gross Weight:  50 KGS

Power supply: AC 220V±10% , 50Hz±2Hz

Measuring range: AC 0-80KV

Limitative current: 5mA

Voltage aberration: ≤5%

Output voltage: 0 ~ 80kV

Speed of pressure regulation: 2.5KV/S±10%

Measurement accuracy: 1.50%

Preset range: Operation frequency: 0 ~ 9 times

                        Stirring time: 0 ~ 1min39s

                        Stationary time: 0 ~ 1min39s

Use condition: Environment Temperature: -10 °C~ +35 °C

                         Humidity: ≤85%RH

Overall Diameter: 415×415×315(mm)

Net Weight: 28 kg
