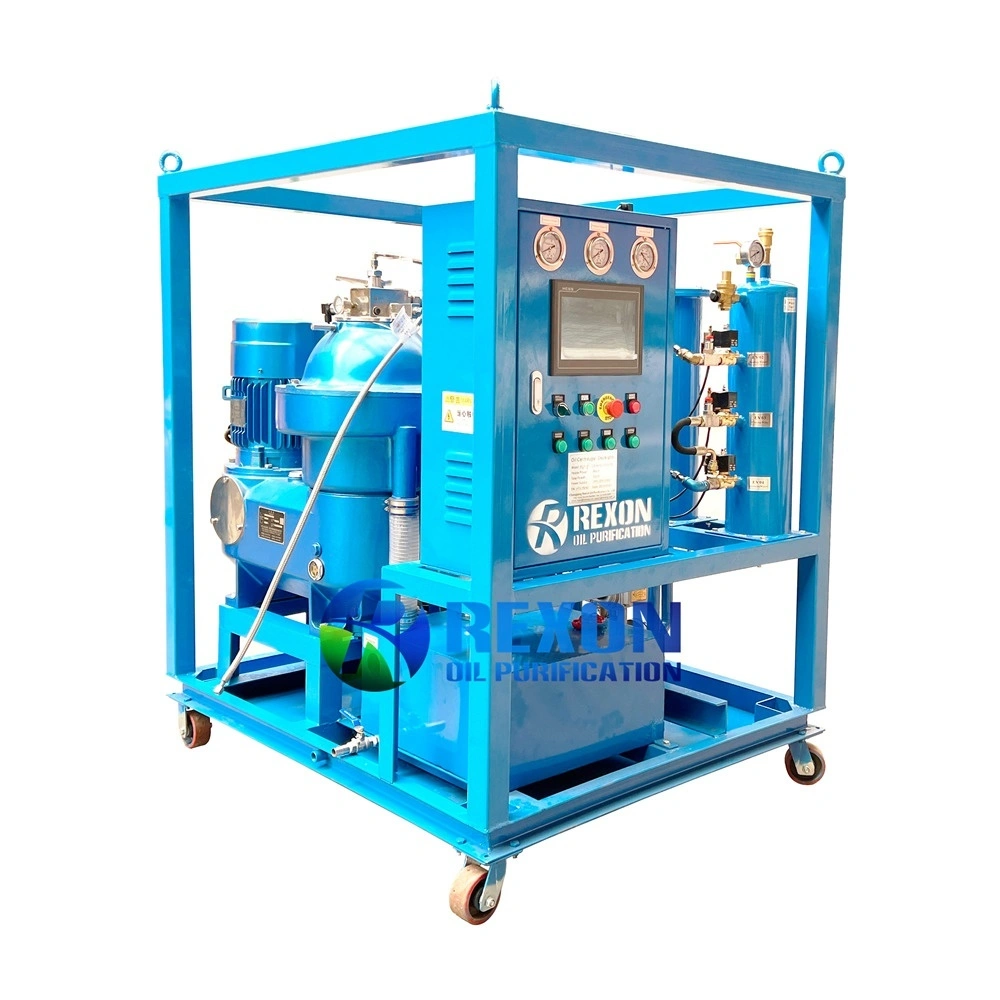

PLC Automatic Self-Discharging Centrifugal Oil Separator with Frame Design

Rexon RCF3T(3000LPH) fully automatic centrifugal oil purifier is especially for purifying and filtering used industrial oils which have a high content of water and solid particle impurities, such as lubricating oil, heavy diesel oil, and other waste oil collected from some large mechanical equipment, power plant and ships. Its automatic slag discharge system is specially designed to solve the problem of repeated cleaning of centrifuges caused by high impurity content, making machine operation and maintenance very simple and labor-saving.

Rexon RCF3T(3000LPH) is a disc-type three-phase separation centrifuge oil purifier, which is a device used to separate liquids and solids, as well as different liquid phases. Its main working principle is to use a high-speed rotating disc structure to generate a strong centrifugal force, which causes substances of different densities to separate into separate layers according to their density differences.

Besides the oil purification industry, it can also be used in the following applications:

Food industry: such as oil extraction and dairy separation.

Chemical engineering: such as multiphase liquid separation.

Pharmaceutical industry: for the separation of suspensions, extraction, and purification.

Etc.

● Equipped with an automatic slagging system to ensure efficient, hands-free sediment discharge.

● Utilizes PLC one-button intelligent control for fully automatic, reliable operation.An optional heat recovery device improves heating efficiency by over 50% for models above 50 L/H.

● Advanced gradual-density filtration technology achieves up to 0.5μm accuracy and 99.99% particle removal; stainless steel filter elements are available for long-term use.

● Integrated energy-saving high-density heaters with temperature and dry-run protection for optimal dehydration without oil damage.

● Flexible oil inlet/outlet switching simplifies pipeline connections on-site.

● Comprehensive safety protections including power, pressure, motor overload, and oil inlet blocking safeguards.

● Intuitive operation panel displays real-time status and faults for easy monitoring and maintenance.

● Rexon RCF-3T(3000LPH) centrifugal oil purifier is equipped with an automatic slagging device and PLC system, which can discharge the waste oil and solid impurities from the machine fully automatically,  solve manual slagging troubles and improve the oil purification efficiency.

● It is equipped with the PLC automatic intelligent controller, makes the operation very easy, just press the "automatic" run button to start the equipment, it will be fully automatic operation, to minimize manual operation error.

● In order to reduce the heating load of the plant, Rexon RCF-3T centrifugal oil purifier equipped with heat recovery device, the oil pump will pump out the hot oil and import cold oil for energy exchange,and heating efficiency will be increased by 50% or more.

● The frame structure and lifting hole design make it easy to lift the machine for long and short transportation, protecting the machine from damage.
