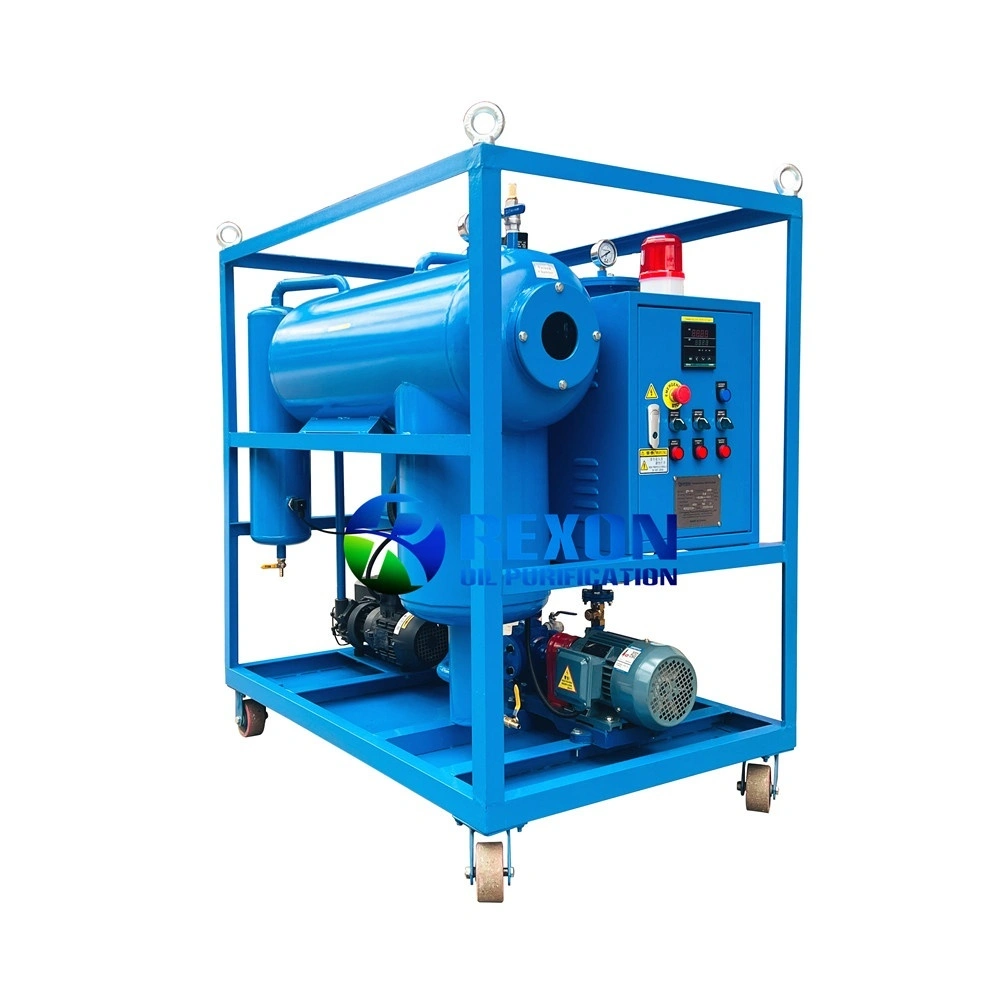

High Efficiency Insulating Oil Filtration and Purification Machine

ZY-30 (1800 Lites/Hour)

It can thoroughly degas, dehydrate, and purify the insulating oil, quickly restoring the oil’s dielectric strength and improving its breakdown voltage. At the same time, it effectively removes moisture, dissolved gases, and solid particles, helping to prolong transformer service life, maintain reliable performance of high-voltage electrical equipment, and ensure safe and stable operation of power systems.

Inquiry

Write a Review

More Choices

Go to Store

Single Stage Vacuum Insulating Oil Purification Machine ZY-30

Add to cart

Inquiry

Enclosed Type Small Portable Transformer Oil Purifier

Add to cart

Inquiry

PLC Fully Controlled Single Stage Vacuum Transformer Oil Purifier

Add to cart

Inquiry

Rexon Single Stage Vacuum Type Transformer Oil Filtration Unit ZY

Add to cart

Inquiry

REXON ZY-30(1800litres/hour) high efficiency insulating oil filtration and purification machine is applied for purifying aging transformer oil, mutual inductor oil, switch oil, capacitor oil in fields of power transmission and transformation equipment, electric power department and mining enterprises.

It can thoroughly degas, dehydrate, and filter the oil to quickly restore the dielectric strength.

1. Portable and Flexible – Compact design makes the unit easy to move, suitable for any on-site projects.

2. Multi-Stage Filtration – High-precision filter media with multi-stage, progressively tightened filtration remove fine particles effectively.

3. High-Efficiency Vacuum System – Advanced stereo multi-stage vacuum technology can quickly remove moisture, gases, and impurities, restoring dielectric strength and improving oil quality for safer, more reliable power equipment operation.

4. Advanced Heating Technology – Low-density indirect-circulation carbon-fiber heating prevents oil cracking, ensuring low energy consumption, uniform heating, and stable oil temperature.

5. Automatic control: this system adopts high-end sophisticated configurations such as automatic constant temperature control, automatic liquid level control, automatic defoaming control, automatic pressure protection, etc., to ensure that the equipment does not spray oil during operation, and runs safely and stably.

6. Interlock protection: Overload protection, overpressure alarm shutdown protection, oil shortage protection, fuel injection protection, phase sequence protection, etc. ensure the long-term reliable operation of the whole machine.

It's a new-type of high effective vacuum oil purifier with the duplex 3D stereo-evaporation technology and G technology. Adopt the technology, which remove the impurities through double FH trapezoidal network and absorbing by high polymer without the mechanical power.

So it's five or eight times as effective as the common vacuum oil purifiers. The consumption of energy is lower and doesn't require other wearing materials. And it’s smaller size, and easy to move, more portable for on-site transformer oil filtration work.

Parameters		Model Unit	ZY-10			ZY-30	ZY-50	ZY-100		ZY-150	ZY-200	ZY-300
Flow Rate		L/hr	600			1800	3000	6000		9000	12000	18000
Working Vacuum		MPa	-0.06 ～ -0.095
Working Pressure		MPa	≤ 0.3
Temperature Control Range		℃	20 ～ 80
Operation Temperature		℃	50 ~ 70（55~60 is best）
Power Supply			380V, 3 Phase, 50Hz (or as per requirements)
Working Hours Without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Working Noise		dB（A）	61		70		70	78		78	78	78
Heating Power		KW	15		15		15	48		60	72	90
Total Power		KW	16.5		16.5		33.5	53		65	78	98
Inlet/Outlet		mm	φ25		φ25		φ32	φ42		φ48	φ48	φ60
Weight		Kg	230		270		300	550		700	950	1200
Overall	Length	mm	1050		1		1200	1450		1600	1800	1900
	Width	mm	750		800		950	1000		1100	1200	1200
	Height	mm	1300		1450		1500	1800		1800	1900	1900
AFTER TREATMENT
Dielectric Strength				KV					≥ 75-85
Water Content				PPM					≤ 3
Gas Content				%					≤ 0.1
Flash Point				℃					≥145
Particle Size				μ					≤ 1
Cleanliness ≤NAS 1638 Grade 5
