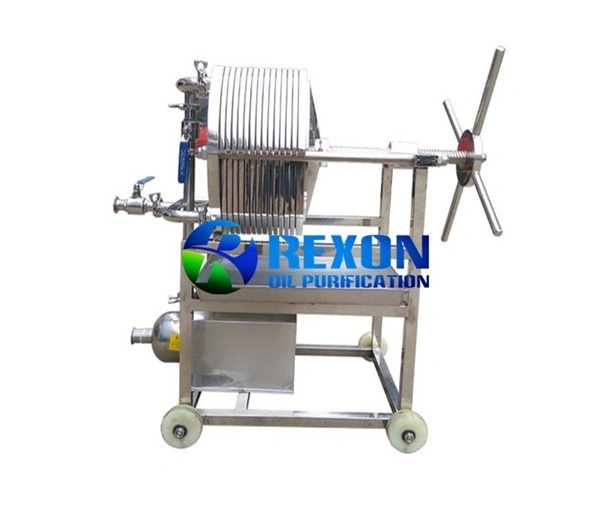

304 Stainless Steel Plate Pressure Oil Purifier
More Choices
Introduction:304 stainless steel plate pressurized type oil purifier Series PL, its whole machine body and all filter plate elements are made of 304 stainless steel, and equip with stainless steel oil pump. This machine is specially designed for cooking oil filtration for human consumption. PL equipped with high-precision filter paper (1 micron), which can remove oil impurities, thereby improving oil purity and brightening oil color.
Main Parameters
Model PL-30 Capacity(kg/h) 30L/M Filtering Area (≥) 0.3 Power(Kw) 1.1 Working Pressure(Mpa) 0 - 0.5 Power Supply 380V, 50HZ, 3Phase or As Requirement Board Frame Size(mm) 180*180 Filtering precision 1 Micron Filter Frame Number 11 Filter Plate Number 12 Dimension(mm) 700*300*720 Weight(kg) 76
Advantages:1. Low noise, quick and convenient to replace filter paper.
2. Simple structure, sasy to use, lower operation cost.
3. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types.
