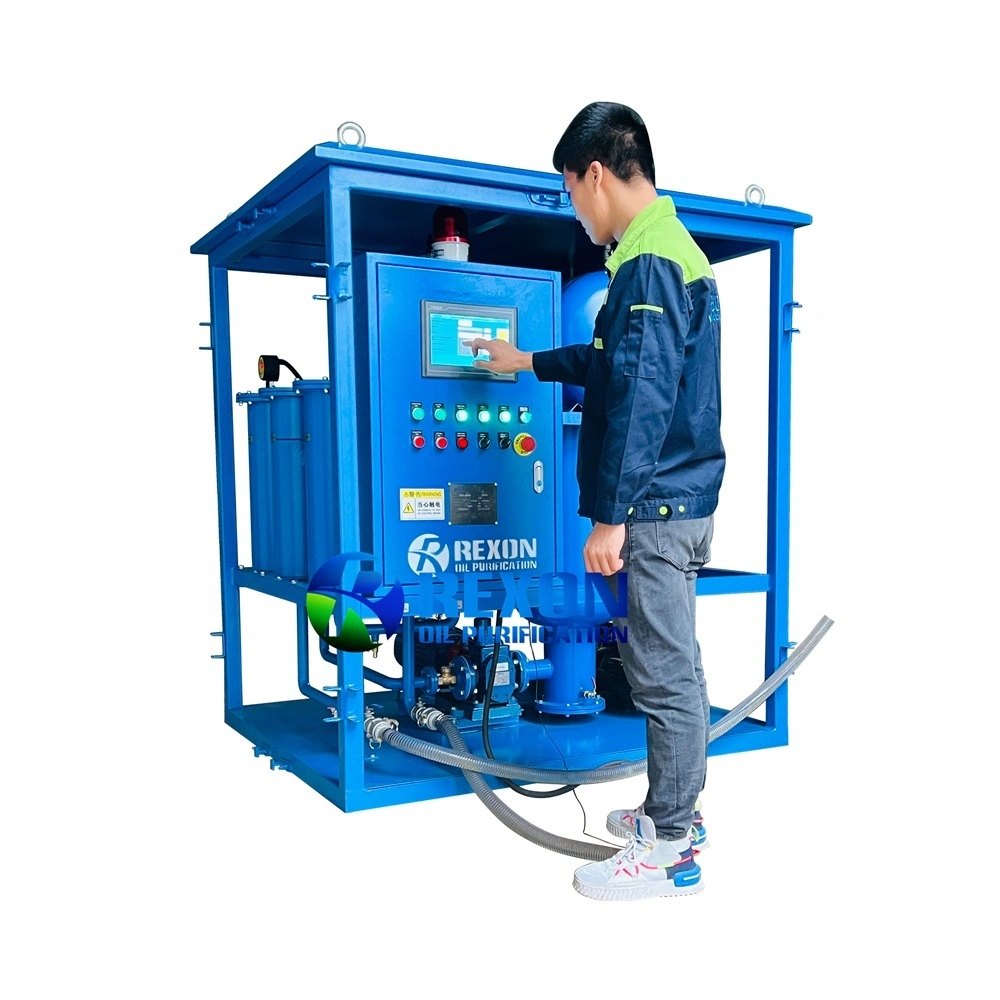

Double Stage Vacuum Transformer Oil Filtration Machine with PLC Fully Automatic System

REXON ZYD-2000 fully automatic transformer oil purifier which is 2000 liter/hour capacity with double stage vacuum system for oil filtration, oil dehydration and degasification. It is used for electric power departments and industries to deal with transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, making sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for large electric & insulation equipment.

1. It has a two-stage high-speed vacuum system and a multi-stage vacuum analysis separation system, which can quickly remove moisture, gas, impurities, polar substances, and other degraded substances from the oil.

2. The three-dimensional flash dehydration and degassing technology is adopted to efficiently remove water and gas from the oil, so that the breakdown voltage can be rapidly increased to more than 75~85KV.

3. The effect of one-time filtration is greatly improved, which reduces the risk of oil aging caused by repeated filtration and heating in general oil purifiers.

4. Using the independent dual-channel technology of complex oil and gas, the secondary re-dissolution technology in the separation of oil and gas can be used to quickly remove various organic hydrocarbon gases in the oil, ensuring that the content of acetylene and hydrogen in the oil is zero.

5. Heating by a carbon fiber infrared heating system, which is the most advanced heating technology. The unique heater structure heats the oil uniformly and is easily controlled, it gives out the heat quickly (in 3 seconds after power on) and the efficiency of electricity transforming to heat is very high (more than 98%). High efficiency, low density heating method for oil, which can prevent oil cracking at high temperature.

6. The use of a multi-stage high β-value compound progressive filtration system can effectively filter the fine particles of mechanical impurities in the oil.

7. Online oil filtering, unattended operation, vacuum oiling of transformers, etc.

8. Advanced liquid level automatic control system, automatic defoaming control system, pressure protection system, and safety interlock control ensure long-term, saf,e and reliable operation of the equipment.

REXON Transformer Oil Filter Machine for HV and Super High Voltage Transformer Maintenance is a high vacuum dehydration transformer oil purification and degasification machine that adopts two-stage high vacuum system.

High efficiency three-stage filter system, high-power low-temperature heating system, constant temperature heating control system, intelligent electronic control system, PLC control system, automatic oil level The detection system, the vacuum detection system, and the safety protection system, etc., REXON machines are constructed using the latest oil filtering technology and internationally renowned brand accessories.
