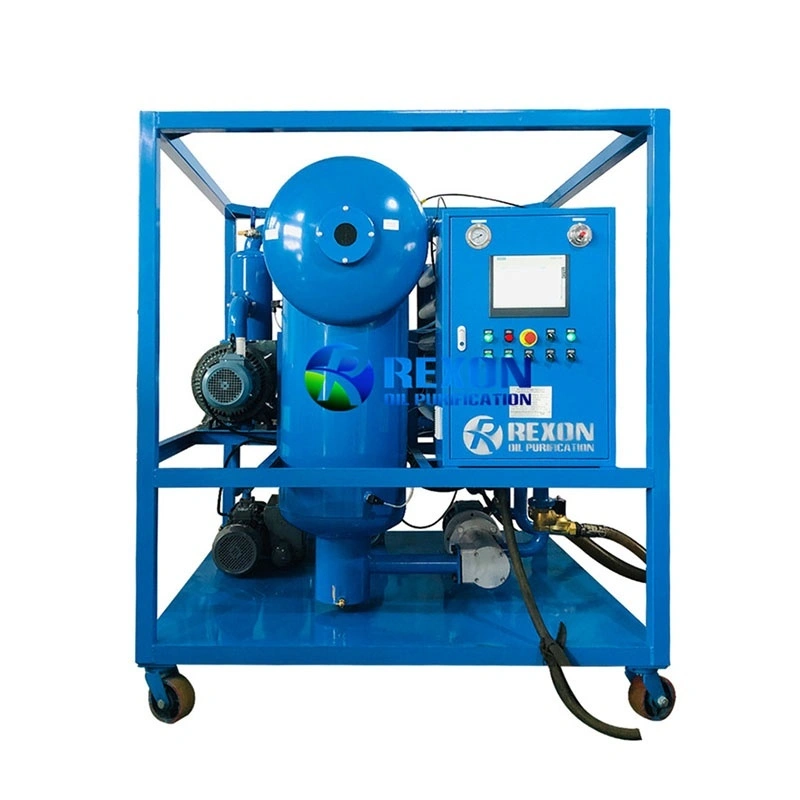

9000L/Hr Fully Automatic Type Transformer Oil Filtration Machine
More Choices
Application
Rexon 9000L/Hr Fully Automatic Type Transformer Oil Filtration Machine for Onsite Maintenance is mainly used for unqualified transformer oil cleaning, and do cleaning processing to various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The transformer oil purifier machine is especially for purifying the electric insulation oil in all kinds of large power equipment that are above 110KV, especially for the altitude is over 500-1000 meters. Our transformer oil filtration unit can remove the free and dissolved water, gas and particles from oil high-efficiently, and improve dielectric value of treated oil to be higher than 75~85KV, and increase the pressure force and quality of oil, make sure the electric device running safely. This oil purification system is very suitable for the large power electric equipment and transformers.
Advantages9000L/Hr Fully Automatic Type Transformer Oil Filtration Machine can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. And beside transformer oil cleaning and purification process for oil, ZYD system can also do independent work for transformer vacuuming, evacuating transformers.Besides, this 9000L/Hr transformer oil filtration machine is equipped with PLC system and touch operation screen, it is fully automatic running machine, easier operation for uses. For example:1. Set the machine to run for 2 hours, and the machine will stop automatically when the time is up. 2. Set the oil product PPM to 5PPM, the machine will run automatically, and it will stop automatically when the moisture content in the oil below 5PPM. etc.
Technical Parameters
