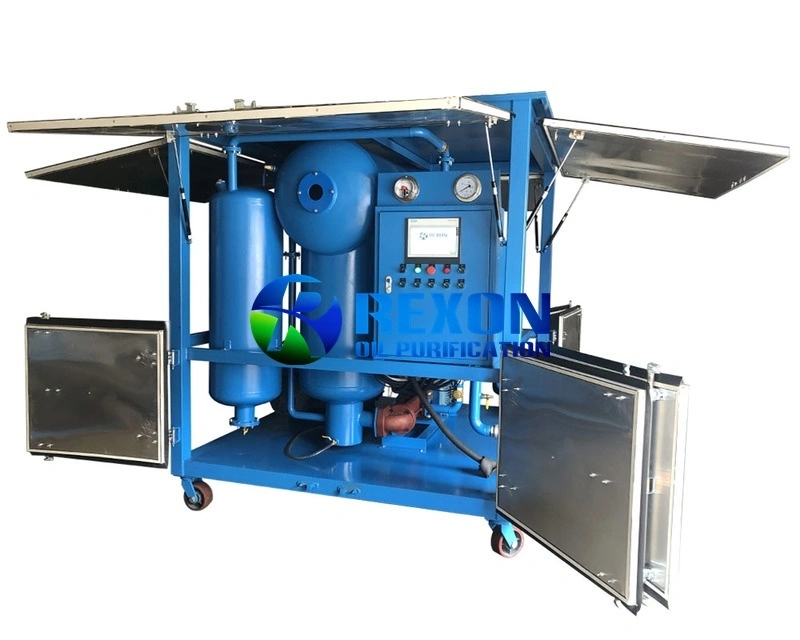

REXON Fully Automatic PLC Type Transformer Oil Filtration Machine
More Choices
Application
REXON Fully Automatic PLC Type Transformer Oil Filtration Machine is a fully automatic transformer oil purification processing equipment. With one button start, the machine runs automatically, without the need for the operator to guard the machine and liberate the labor. The fully automatic PLC type oil filter machine is easy to use and easy to maintain. It is a transformer maintenance equipment that is very suitable for on-site processing of transformer oil.Advantages
The REXON fully automatic PLC type transformer oil filter machine can set the following functions:
*Automatic timed shutdown mode
Set the machine's working time you want, for example 10 hours, or 20 hours, put this data onto the PLC operating screen, and machine will work accordingly by 10hours, or 20 hours, and once the working time satisfied, the machine will shutdown automatically .
*Automatic PPM compliance shutdown mode
Set the PPM data you want the oil to obtain from the filtration process, then machine will shutdown when oil PPM data reaches this value. For example, you set 5PPM or 3PPM to the panel, then machine will auto stop when the online PPM tester detect The oil's PPM value to be 5PPM or 3PPM.
In addition, REXON fully automatic PLC type transformer oil filter machine can also be used to fill the transformer and vacuum the transformer.
Technical Data
Treated oil data after the treatment
1. Water Content≤3PPm
2. Gas Content≤0.1%
3. Residual moisture: ≤3PPm
4. Particles: ≤1-5μm
5. Breakdown Voltage: ≥75kv
6. Cleanliness: ≤ NAS1638 5 class standards
